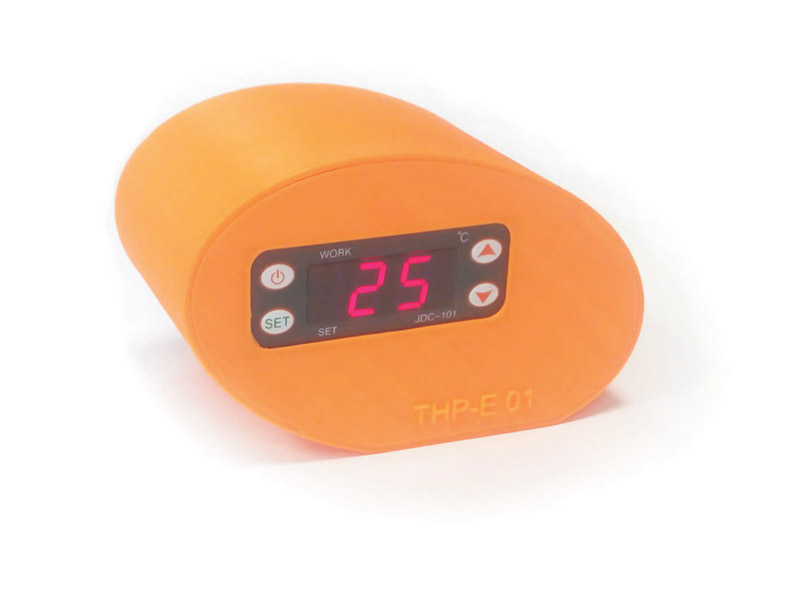

Electronic thermostat THP-E01

C.1.19 - function: switch/alarm

Download

• Datasheet

Description

• programmable menu
• switch between heating and cooling
• temperature control by the pre-set value and difference
• mounting: onto wall
• placement: common environment

Technical parameters

• default range: 0-99°C
• programmable range: -50-99°C
• power supply: 230V
• contact load: 10A/250V
• power consumption max 5W
• IP protection: IP 44
• adjustable switch difference: 1-16 K
• function: cooling/heating/alarm
• compressor delay: 0-9 minutes
• temperature correction: -5+5°C
• adjustable range of setting

Specification

Electronic thermostats are mainly used in applications, where the emphasis is put on visual aspect and easy control, or where it is cunvenienttupreventdirectcuntact with the contacts. Main advantages of these thermostats are easy control, mounting and reliability.

Widely med for switching of boiler circulation pump. Thermostats TEP-E01 feature change-over contact for connection and disconnection of electric circuit. While using thermostat THP-E01 fix possible to set the switching difference. The thermostat A supplied with sensor, power cable and cable for connectingthepump.

Colour versions

silver, wood design, ivory, blue, orange, black
