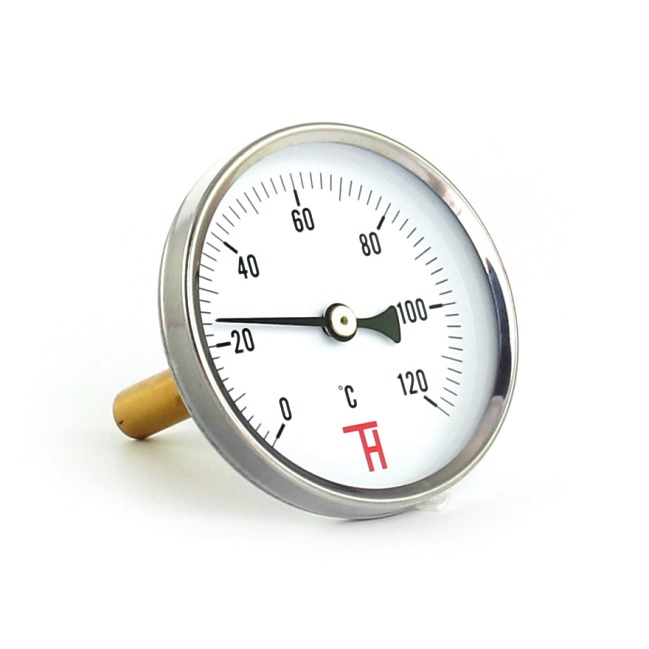

Heating thermometer ETR

A.1.01. - diameter 63, 80, 100, 160mm bottom, back connection including CuZn well G1/2

Download

• Datasheet

Description

• head: galvanized sheet
• copper stem
• acrylate inspection hole
• brass thermowell with thread G1/2 is part of the thermometer
• back connection, on individual request bottom connection

Application

• heating and sanitary technology
• heating management, power engineering
• other operations without high technical requirements

Technical parameters

• case diameter: 63, 80, 100, 160mm
• temperature ranges: 0-120°C (-50+50, -30+30, -20+40, -20+60, -15+45, -10+70, -10+60, 0-40, 0-50, 0-60, 0-80, 0-100, 0-160, 0-200, 0-250°C)
• stem length: 50, 65, 105, 150mm
• accuracy: kl.2

Specification

Heating thermometers are universally applicable devices for local temperature measurement, mainly used in heating engineering and light industry. Thermometers may be used for temperature measurement in any position.

Thermometers head may be placed into simple environment according to ČSN 33 0300 within range -30+110°C. Permitted tolerance for all ranges is in accordance with kl.2 from all range. Measured temperature must not exceed max. scale range.

Thermometers are produced with various stem lengths as mentioned in the technical documentation. Brass thermowell PN6 (Pn25) with G1/2 thread comes as part of the thermometer, see technical documentation.
