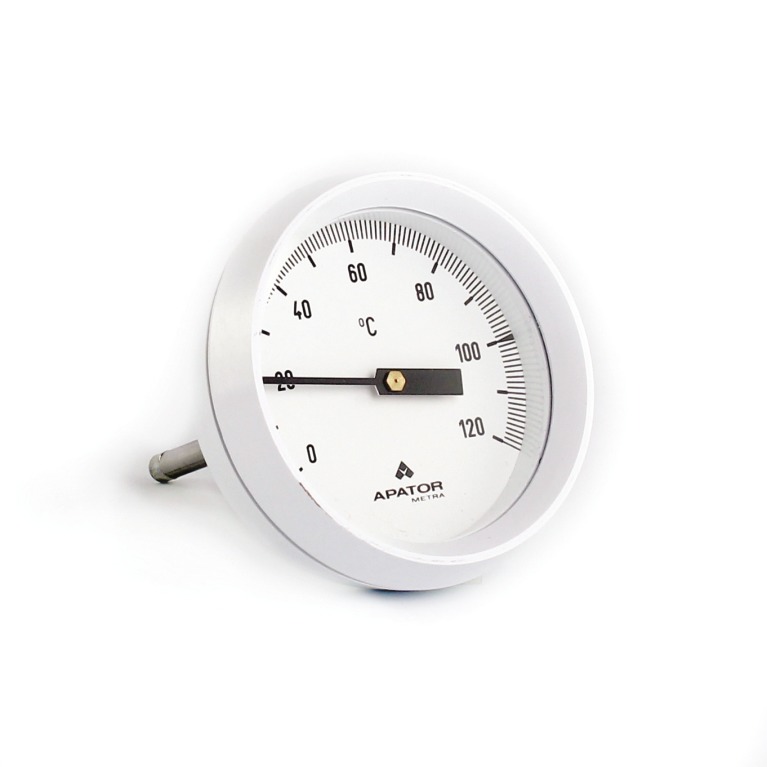

Bimetallic thermometer DTR a DTÚ

A.1.03. - diameter 106mm bottom,back connection

Download

• Datasheet

Description

• resistant plastic head
• stainless steel stem 17 248/1.4541
• glass inspection hole
• the thermometer is supplied without stem
• back connection DTR (straight thermometer)
• bottom connection DTÚ (angular thermometer)

Application

• heating and sanitary industry
• heating management, power engineering
• food industry
• chemical industry
• hydraulic systems

Technical parameters

• case diameter: 106mm
• temperature range: -30+50, 0-120, 0-200, 0-350, 0-450°C
• stem length: 60, 100, 160, 250, 400, 630, 1000, 1500mm
• stem diameter: 8mm up to length 400mm 12mm up to length 630mm
• accuracy class: ±2%

Specification

Bimetallic technical thermometers are due to its design and accuracy meant to be used for normal measuring under operational conditions. They are used for direct temperature measuring in almost all branches of industry. They may be used in cold rooms, boiler rooms, bakeries, drying rooms, green houses, smokehouses and in many other places using central heating systems. In specific cases the thermometers may be designed for extreme climate conditions.

A well must be used if it is necessary to protect the stem from high pressures or aggressive agents. Standard wells are available - steel PN6, stainless steel PN25 and PN40, then special wells for high parameters according to DIN or ON standards.
