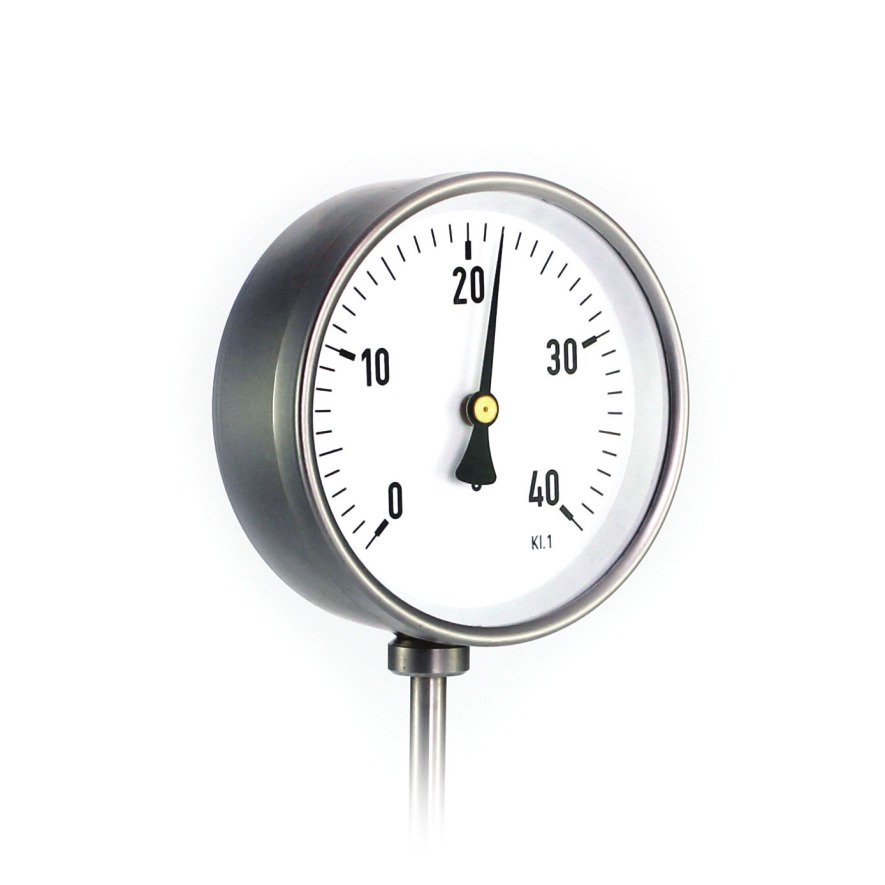

Industrial thermometer TPS, TPZ, TPO
A.1.06. - diameter 63, 80, 100, 160mm bottom, back, turning connection
Description
- bayonet or encapsulated case
- stainless steel stem 17 248/1.4541
- glass inspection hole
- threadless or threaded connection
- bottom connection TPS, back connection TPZ,
- turning connection TPO
Application
- heating industry
- petrochemically industry
- food industry
- cooling industry
- farmaceutical industry
- hydraulics
Technical parameters
- diameters: 63, 80, 100, 160mm
- temperature ranges: -40+40, -40+60, -30+50, -20+50, -20+40, -20+60, 0-60, 0-80, 0-100, 0-120, 0-160, 0-200, 0-250, 0-300, 0-350, 0-400, 0-500°C
- stem lengths: 50, 60, 100, 160, 200, 250, 400mm
- connection threads: G1/4, G1/2, G3/4, G1, M18x1,5, M20x1,5, M24x1,5, M24x1,5, M27x2, 1/2NPT, 3/4NPT
- accuracy: class 1
- protection: IP 65
- choice if silicon or glycerine filling
Specification
Industrial thermometers TPS, TPZ, TPO are the highest series from all bimetallic thermometers, which can be used in very demanding conditions. The stem may be exposed to pressures up to 25bar, for higher pressures it is required to use a well.
Industrial thermometers are supplied in wide range of designs with choice of connectors. Case in bayonet or encapsulated design, other optional accessories: silicone or glycerine dampers, max. pressure needle, lazy needle, etc.
A well must be used if it is necessary to protect the stem from high pressures or aggressive agents. Standard wells are available - steel PN6, stainless steel PN25 and PN40, then special wells for high parameters according to DIN or ON standards.
