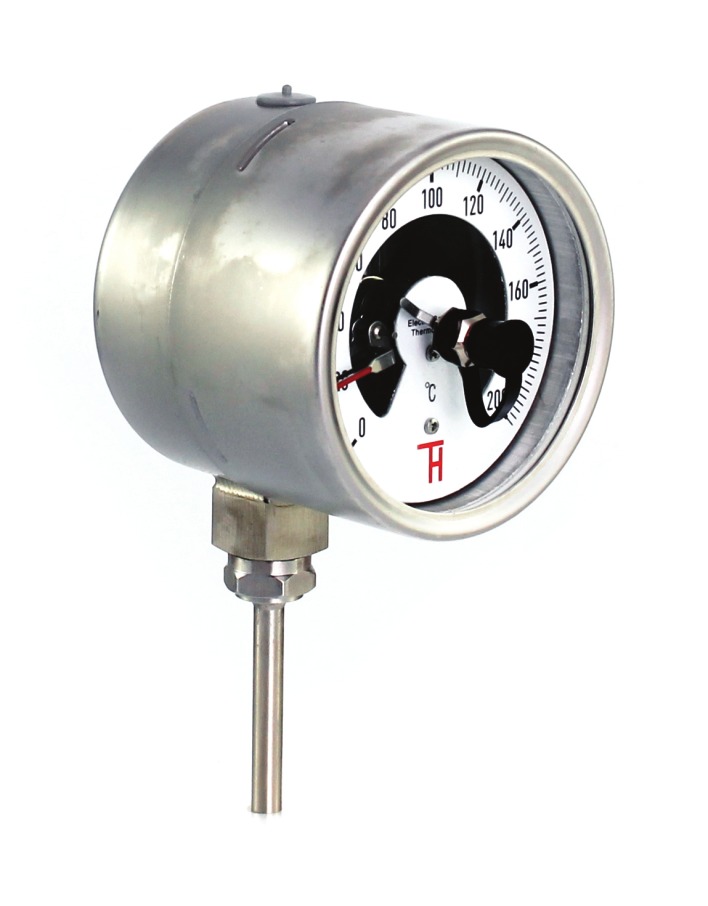

Pressure stem TTS thermometer
A.1.07. - diameter 63, 80, 100, 160mm bottom, back bended connection
Description
- bayonet stainless steel case 17 240/1.4301
- stainless steel stem 17 248/1.4541; 17 348/1.4571
- glass inspection hole, safety glass
- individual stem lengths, connections and other design features
- back, bottom and bended connection
Application
- food industry
- hydraulics
- petrochemical industry
- cooling industry
- light and heavy industry
- farmaceutical industry
Technical parameters
- case diameters: 63, 80, 100, 160mm
- temperature ranges: -40+40, -40+60, -30+60, -20+40, -20+60, 0-60, 0-80, 0-100, 0-120, 0-160, 0-200, 0-250, 0-300, 0-350, 0-400, 0-500, 0-600°C
- stem lengths: 125, 160, 200, 250, 315, 400, 500, 1000mm, individual
- stem diameters: 6, 8, 10mm, individual
- accuracy: ±1%
- protection: IP 65
Specification
Pressure thermometers use for measuring a closed pressure circuit with Bourdon tube. Compared to bimetallic thermometers, this system is remarkable for its higher accuracy, stability and resistance. They may be used in all kinds of operations due to the wide range of types and versions. Its accuracy is reached even in very demanding conditions.
Pressure thermometers come in wide range of designs. You may choose from various connections: threadless, with union nut, fixed or turning outer thread. Case is made of steel or stainless steel. Choose from other accessories: silicone or glycerine damping, magnetic or inductive contacts, indication needle, lazy needle, etc. Specify the pressure thermometer features in the order by modification of the order code, see technical page.
