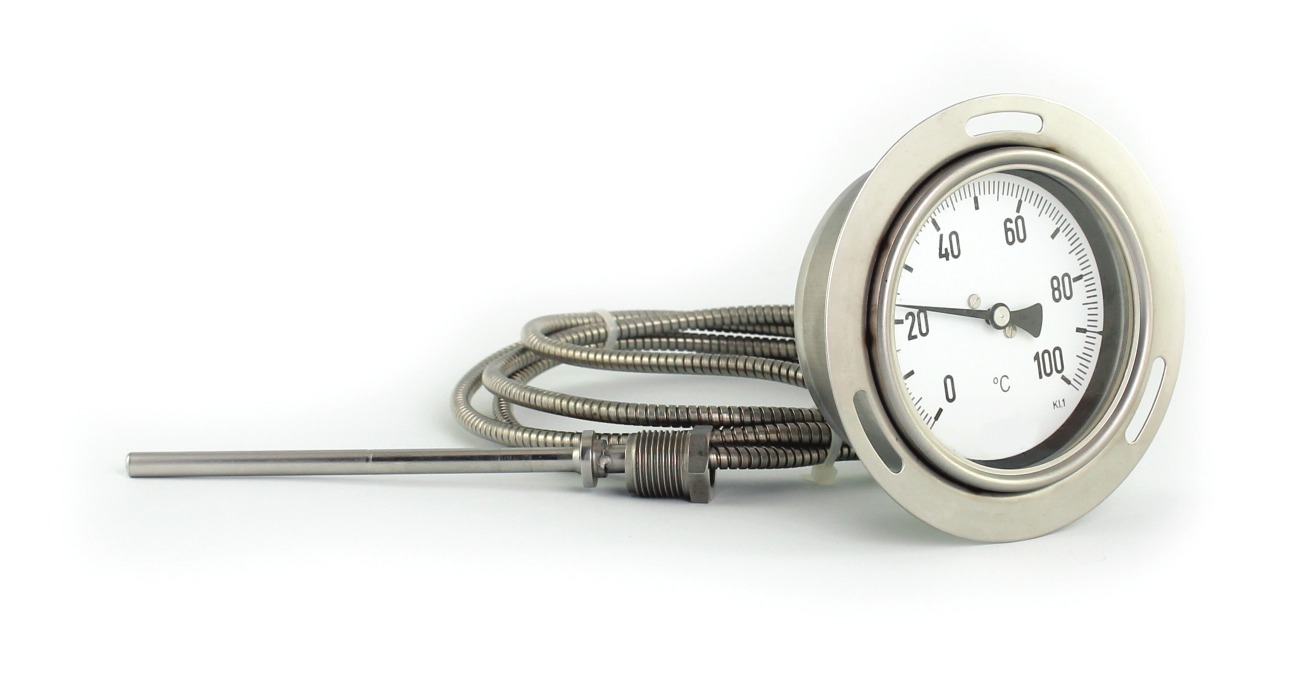

Capillary pressure TTK thermometer
A.1.08. - diameter 63, 80, 100, 160mm bottom, back connection cantilever or flange mounting
Description
- bayonet case 17 240/1.4301
- stainless steel capillary 17 248/1.4541, PVC braiding or spiral protection
- glass inspection hole
- individual capillary lengths, sensor and connection designs, other variations
- back, bottom connection
Application
- food industry
- petrochemical industry
- cooling industry
- semi-heavy and heavy industry
- farmaceutical industry
- hydraulics
Technical parameters
- diameters: 63, 80, 100, 160mm
- temperature ranges: -40+40, -40+60, -30+50, -20+50, -20+40, -20+60, 0-60, 0-80, 0-100, 0-120, 0-160, 0-200, 0-250, 0-300, 0-350, 0-400, 0-500, 0-600°C
- capillary lengths: 1; 1,6; 2,5; 4; 6; 10; 12; 16; 25m
- sensor lengths: 125, 160, 200, 250, 315, 400mm, individual
- sensor diameter: 6, 8, 10mm, individual
- accuracy: ±1%
- protection: IP 65
Specification
Capillary pressure thermometers use for measuring a closed pressure circuit with Bourdon tube. Compared to the bimetallic thermometers, this system is remarkable for its higher accuracy, stability and resistance. They may be used in all kinds of operations due to the wide range of types and versions. Capillary pressure thermometers come in wide range of designs. You may choose from various connection and case designs, different stem lengths from 1 to 25 m, sensor design, etc. Choose from other accessories: silicone or glycerine damping, magnetic or inductive contacts, indication needle, lazy needle, etc. Specify the capillary pressure thermometer features in the order by modification of the order code, see technical page.
