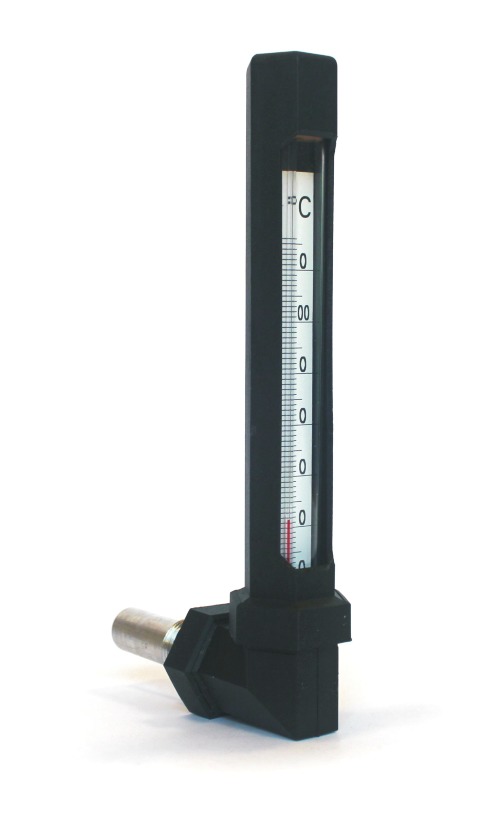

Boiler and technical thermometer
A.1.09. - scale 160, 240mm straight, angular
Description
- boiler design KMU, KMP, KVU,KVP, technical design TMU, TMP, TVU, TVP
- duralumin or plastic case
- well protection duralumin, brass, stainless steel
- angular (90°) or straight design
- ethanol or mercury filling
Application
- heating and sanitary technology
- petrochemical industry
- cooling industry
- light industry
- farmaceutical industry
Technical parameters
- case: 160, 240mm
- temperature ranges: 0-130°C (boiler); -60+30, -35+50, 0-50, 0-100, 0-160, 0-200, 0-300, 0-400°C (technical)
- stem length: 50, 80mm (boiler); 60, 100, 160, 250, 400, 630, 1000mm (technical)
- sensor length: 125, 160, 200, 250, 315, 400mm
- sensor diameter: 6, 8, 10mm
- threads: M20x1,5, G1/2, (M24x2, M27x2, G3/4)
Specification
Boiler and technical thermometers display measured temperature using capillary system filled with organic fluid (coloured spirit or mercury). Designed into wide range of industrial applications without high demands on mechanical resistance. Technical and boiler thermometers are supplied in wide scale of temperature ranges and stem lengths, in design with small (160mm) or big (240mm) display panel and choice of plastic or duralumin case. Protection well of the thermometers sensor does not feature pressure resistance, hence it is not designed for closure of pressure system and serves only as a protective element of the fragile thermometers stem or sensor. In case of use in pressure system it is required to insert the thermometer with its protection well (or socket) into thermometers well, which will withstand pressures of the particular application.
