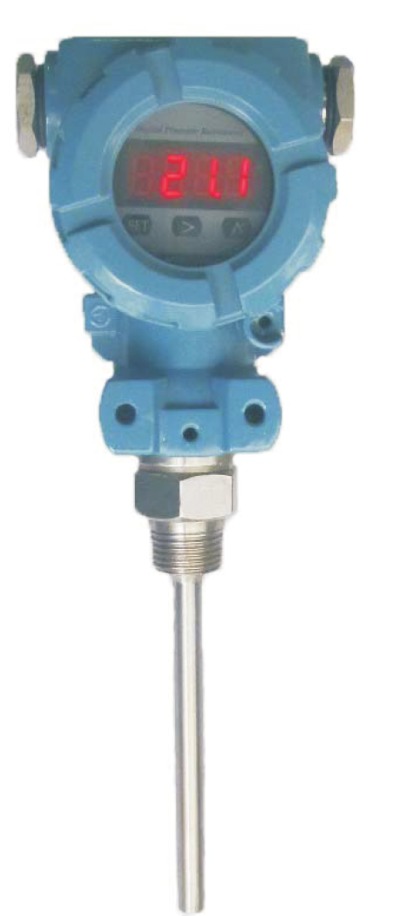

Robust temperature transducer with display into ATEX environment

A.2.05.

Download

• Datasheet

Description

• use of Pt100 or other temperature resistance as a pick-up element
• high accuracy, low power consumption, wide working range of environment temperature
• integrated construction, easy installation
• high accuracy of transmitted signal up to 1000m

Application

• petrochemical industry
• heating industry
• power engineering
• food industry
• healthcare

Technical parameters

• temperature ranges: -200-0, -100-0, 0-60, 0-100, 0-120, 0-160, 0-200, 0-250, 0-300, 0-400, 0-500, 0-750, 0-1200, 0-1300, 0-1600, 0-1800 °C
• output signal: 4-20mA
• connection: M 27x2 (outer), G1/2, M20x1,5
• accuracy class: thermistor - 0,25%FS; 0,5%FS(standard); thermocouple - 0,75%FS

Specification

Temperature transducers THTI8 use temperature sensors Pt100. By means of the inbuilt transducer it converts the measured value to an analog output, for details see technical parameters.

Local temperature indication on 3" LCD display optional. THTI8 case is made of aluminium, parts that come in contact with the medium are made of stainless steel 17 248/1.4541. THTI8 is suitable for temperature measurements in most industrial applications. Also suitable for ATEX environment.
