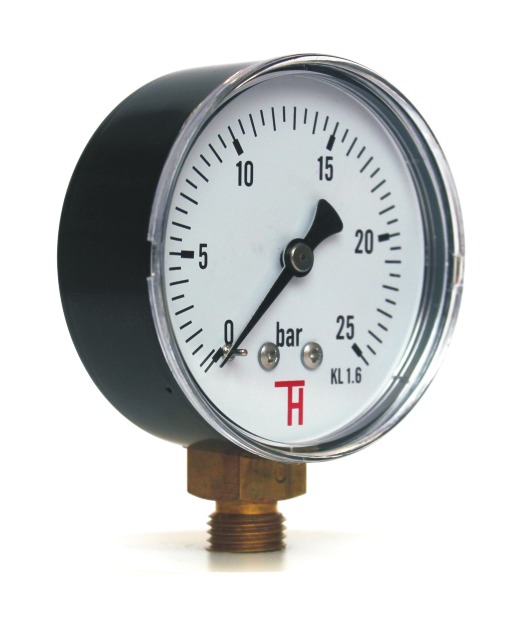

Standard pressure gauge 304/358

B.1.03. - diameter 63mm bottom and back connection

Download

• Datasheet

Description

• metal case
• glass/acrylate inspection hole
• connection 304 (bottom), 358 (back) CuZn and copper alloys
• measuring mechanism CuZn and copper alloys

Application

• heating industry
• air-conditioning
• food industry
• health care
• hydraulics

Technical parameters

• diameter: 63mm
• measure ranges: 0-100, 160, 250, 400, 600kPa, 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 40MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa -100+500; -100+300; -100+150; -100-0kPa
• scale: Pa, Bar, individual
• connection threads: M12x1,5, G1/4 (G1/8, G1/2, M10x1)
• design: pressure gauge, pressure-vacuum indicator, vacuum indicator
• accuracy class: 1,6%

Specification

Standard pressure gauges 304 bottom, 358 back are produced according to standard EN837-1. Mainly used for simple pressure measurement of liquids, vapour and gases, that do not have a corrosive effect on copper alloys and its viscosity allows for measuring using bourdon pen mechanism.

Standard pressure gauges are suitable for use in conditions without high demands on the device. Environment temperature -40 up to 60°C, maximum medium temperature Tmax 60°C.

Other alternatives of design on request - special scale design, connection thread, max. pressure needle etc.
