Standard pressure gauge 310/320

B.1.04. - diameter 80mm bottom and back connection

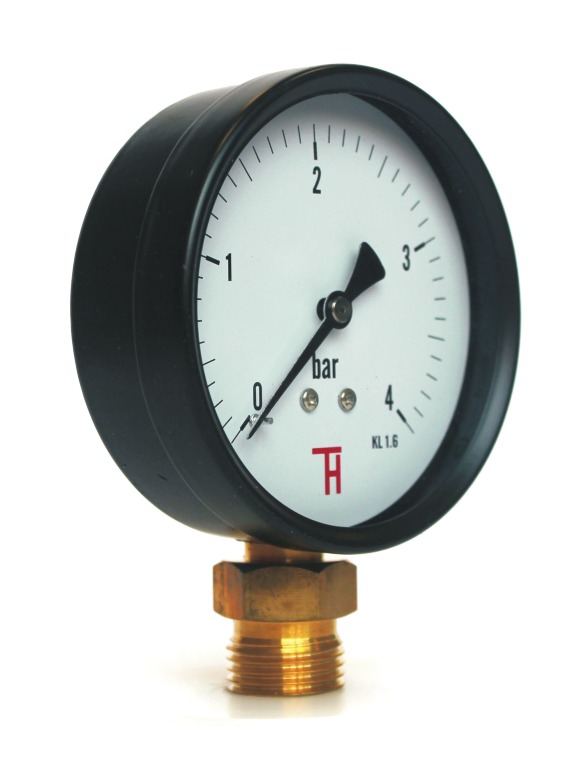

Standard pressure gauge 310/320



  • metal case
  • glass inspection hole
  • connection 310 (bottom), 320 (back) CuZn and copper alloys
  • measuring mechanism CuZn and copper alloys


  • heating industry
  • air-conditioning
  • pneu-systems
  • control systems
  • hydraulics

Technical parameters

  • diameter: 80mm
  • measure ranges 0-60, 100, 160, 250, 400, 600kPa 0-1; 1,6; 2,5; 4; 10; 16; 25; 40; 60MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa -100+500; -100+300; -100+150; -100-0kPa scale: Pa, bar, individual
  • connection threads: G1/2 (G1/8, G1/4, M12x1,5, M20x1,5)
  • design: pressure gauge, pressure-vacuum indicator, vacuum indicator
  • accuracy class 1,6%
  • special scale design


Standard pressure gauges 310/320 are produced according to standard EN837-1. Mainly used for simple pressure measurement of liquids, vapour and gases, that do not have a corrosive effect on copper alloys and its viscosity allows for measuring using bourdon pen mechanism.

Standard pressure gauges are suitable for use in conditions without high demands on the device. Environment temperature -40 up to 60°C, maximum medium temperature Tmax 80°C.

Other alternatives of design on request - special scale design, connection thread, lazy needle, max. pressure needle etc.

Technical specification are subject to change without prior notice. Images are for information only
