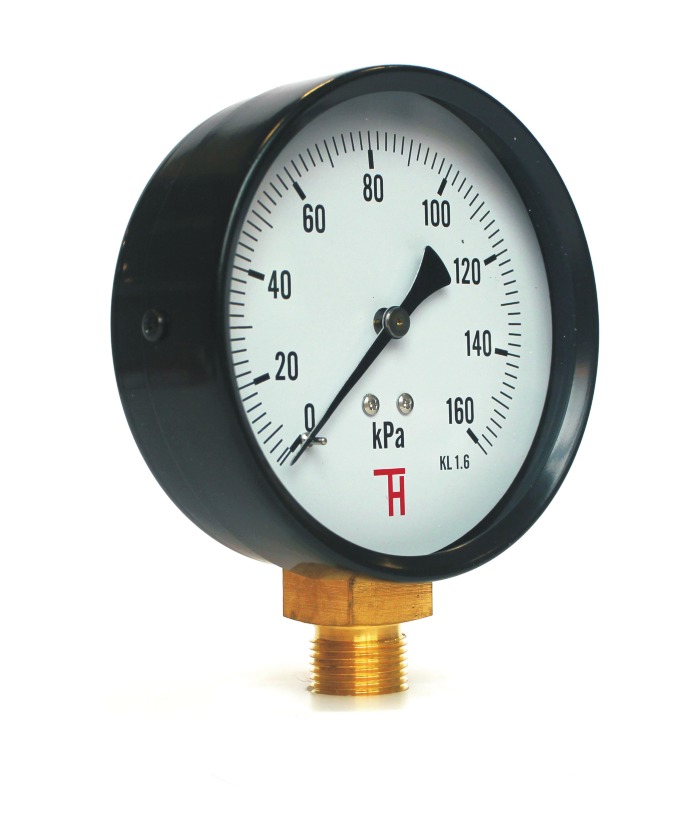

Standard pressure gauge 312/322

B.1.06. - diameter 100mm bottom and back connection

Download

• Datasheet

Description

• metal case
• glass inspection hole
• connection 312 (bottom), 322 (back) CuZn and copper alloys
• back/front flange
• measuring mechanism CuZn and copper alloys

Application

• heating industry
• air-conditioning
• pneu-systems
• control-system
• hydraulics

Technical parameters

• diameter: 100mm
• measuring ranges: 0-60, 100, 160, 250, 400, 600kPa 0-1; 1,6; 0-2,5; 4; 10; 16; 25; 40; 60MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa -100+500; -100+300; -100+150; -100+150kPa
• scale: Pa, bar, individual
• connection thread: M20x1,5, G1/2 (G3/4, M12x1,5)
• design: pressure gauge, pressure-vacuum indicator, vacuum indicator
• accuracy: 1,6%
• special scale design

Specification

Standard pressure gauges 312/322 are produced according to standard EN837-1. Mainly used for simple pressure measurement of liquids, vapour and gases, that do not have a corrosive effect on copper alloys and its viscosity allows for measuring using bourdon pen mechanism.

Standard pressure gauges are suitable for use in conditions without high demands on the device. Environment temperature -40 up to 60°C, maximum medium temperature Tmax 80°C.

Other alternatives of design on request - special scale design, connection thread, lazy needle, max. pressure needle etc.
