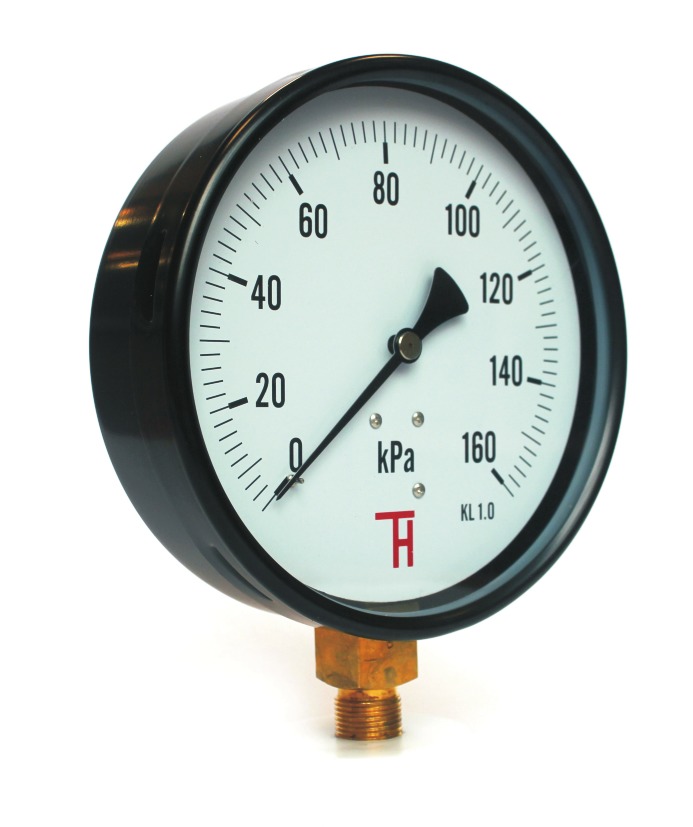

Standard pressure gauge 313/323

B.1.07. - diameter 160mm bottom and back connection

Download

• Datasheet

Description

• bayonet metal case
• glass inspection hole
• connection 313 (bottom), 323 (back) CuZn and copper alloys
• back/front flange
• measuring mechanism CuZn and copper alloys

Application

• heating industry
• air-conditioning
• pneu-systems
• control systems
• hydraulics

Technical parameters

• diameter: 160mm
• measuring ranges: 0-60, 100, 160, 250, 400, 600kPa 0-1; 1,6; 2,5; 4; 10; 16; 25; 40; 60; 100MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa -100+500; -100+300; -100+150; -100-0kPa
• scale: Pa, bar, individual
• connection threads: G1/2, M20x1,5
• design: pressure gauge, pressure-vacuum indicator, vacuum indicator
• accuracy class: 1% (313); 1,6% (323)
• special scale design

Specification

Standard pressure gauges 313/323 are produced according to standard EN837-1. Mainly used for simple pressure measurement of liquids, vapour and gases, that do not have a corrosive effect on copper alloys and its viscosity allows for measuring using bourdon pen mechanism.

Standard pressure gauges are suitable for use in conditions without high demands on the device. Environment temperature -40 up to 60°C, maximum medium temperature Tmax 80°C.

Other alternatives of design on request - special scale design, connection thread, lazy needle, max. pressure needle etc.
