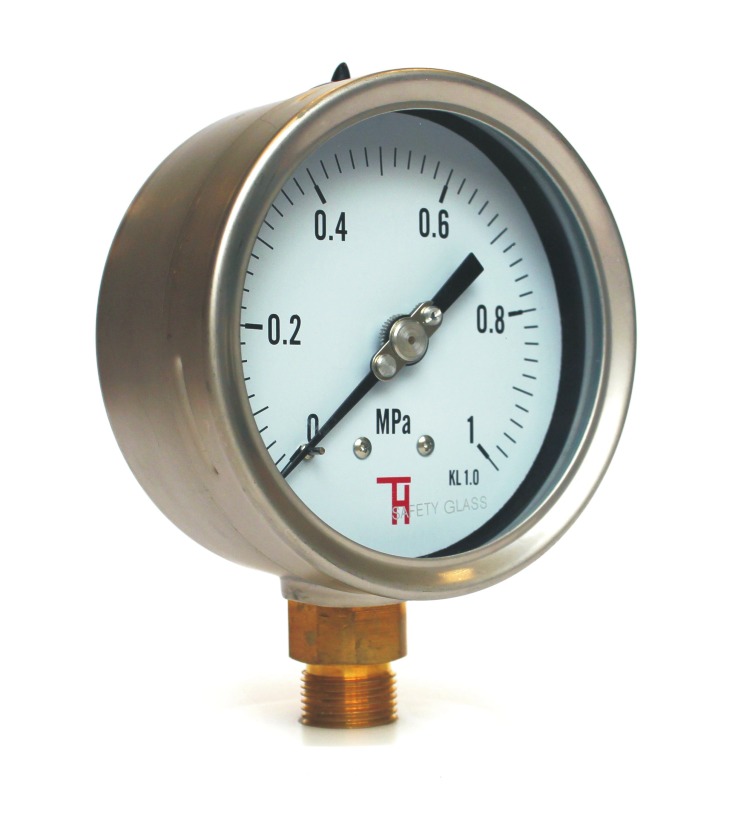

Heavy duty pressure gauge

B.1.08. - diameters 63, 100, 160mm bottom and back connection

Download

• Datasheet

Description

• stainless steel case 17 240/1.4301
• safety glass inspection hole
• connection 304R, 312R, 313R (bottom), 358R, 322R, 323R (back) CuZn and copper alloys
• back/front flange
• measuring mechanism CuZn and copper alloys

Application

• heating industry
• air-conditioning
• light and semi-heavy industry
• food industry
• gas distribution

Technical parameters

• diameter: 63,100,160mm
• measuring ranges: 0-60, 100, 160, 250, 400, 600kPa 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 40; 60; 100; 160MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa -100+500; -100+300; -100+150; -100-0kPa
• dial design: kPa/MPa, bar
• connection thread: M20x1,5, G1/2 (G1/8, G1/4, M12x1,5, NPT)
• accuracy class: 1%, 1,6% (pr.63mm)
• design: pressure gauge, pressure-vacuum indicator, vacuum indicator
• special dial design

Specification

Heavy duty pressure gauges are produced according to standard EN837-1. Mainly used for simple pressure measurement of liquids, vapour and gases, that do not have corrosive effect on copper alloys. Heavy duty pressure gauges are designed into demanding conditions of industries and other applications where measurement stability and accuracy is essential.

Surrounding temperature -40 up to 60°C, medium temperature Tmax 80°C. Other options of design on request - special scale design, atypical dial, connection thread, front and back flange, lazy needle, etc.
