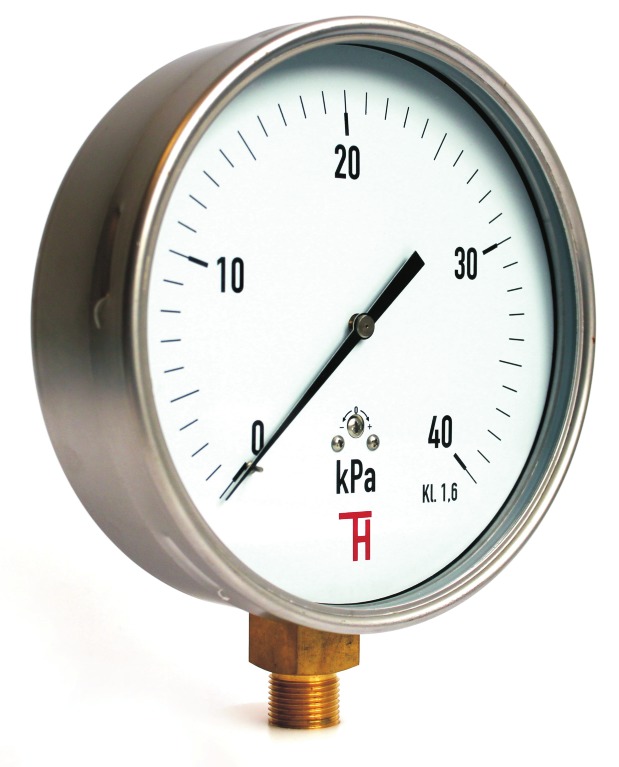

Low pressure gauge 313M, 323M

B.1.11. - diameter 160mm bottom and back connection

Low pressure gauge 313M, 323M

Download

Description

  • stainless steel case 17 240/1.4301
  • safety glass inspection hole
  • connect. 313M (bottom), 323M (back) CuZn and copper alloys
  • measuring mechanism CuZn and copper alloys
  • reset bolt

Application

  • gas industry
  • heating management
  • air-conditioning
  • power engineering
  • gas distribution

Technical parameters

  • diameter: 160mm
  • measure range: 0-400, 600Pa 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 40kPa -150+250; -200+400; -400+600Pa -0,6+1; -1+1,5; -1,5+2,5; -2+4; -4+6; -6+10; -10+15; -15+25kPa -400-0; -600-0Pa -1-0; -1,6-0; -2,5-0; -4-0; -6-0; -10-0; -16-0; -25-0; -40-0kPa
  • scale: Pa, bar
  • connection thread: M20x1,5, G1/2
  • accuracy class: 1,6%
  • design: pressure gauge, pressure-vacuum indicator, vacuum indicator
  • special scale design

Specification

Low pressure gauges 313M/323M are produced according to standard EN837-3. Mainly used for pressure measuring of liquids, vapour and gases, that do not have corrosive effect on copper alloys.

Low pressure gauges are designed for very low pressure measurements up to 400Pa. Used primary in gas distribution.

Environment temperature -40 up to 60°C,medium temperature Tmax 60°C. Low pressure gauges are equipped with regulatory bolt for exact reset, when it is required to set zero value before each installation.

Other design options on request special scale design, connection thread, glycerine or silicon damping, front/back flange, etc.


Technical specification are subject to change without prior notice. Images are for information only
