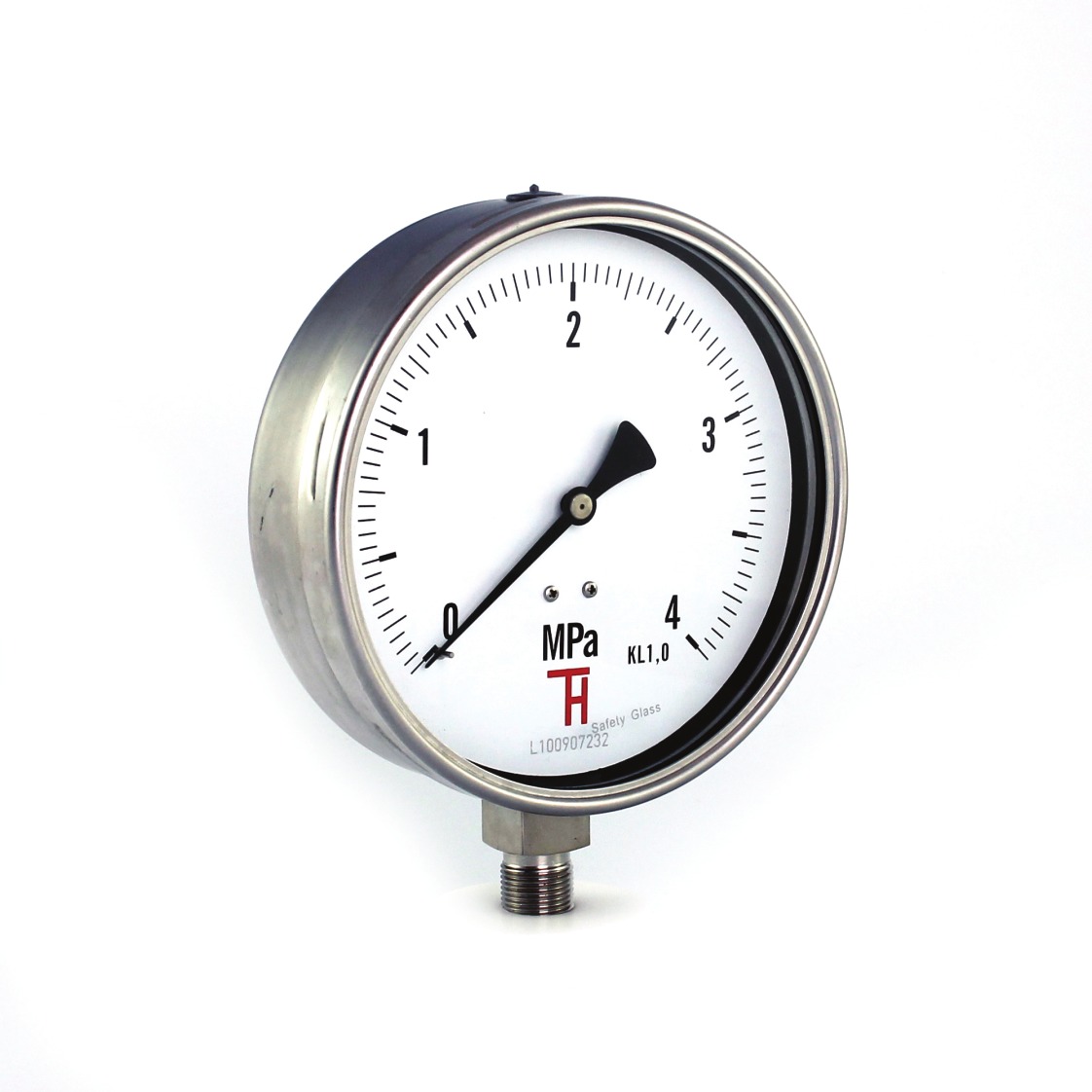

Control pressure gauge 313
B.1.17. - diameter 160 mm bottom connection
Description
- bayonet case of stainless steel 17 240/1.4301
- glass inspection hole
- bottom connection CuZn and copper alloys
- measure mechanism CuZn and copper alloys/stainless steel
- low pressure design from 400Pa up to 40kPa, high pressure design from 60kPaup to 160MPa
Application
- heating indusrty
- hydraulics
- air-conditioning
- light industry
- calibration, certification, inspection
Technical parameters
- diameter: 160mm
- measure ranges: 0-400, 600Pa 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 40kPa 0-60, 100, 160, 250, 400, 600kPa 0-1; 1,6; 2,5; 4; 6; 10, 16; 25; 40; 60; 100; 160MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa -100+500, -100+300, -100+150, -100-0kPa
- connection threads: M20x1,5, G1/2
- accuracy class: 1%, 0,6%, 0,4%, 0,25%
- design: pressure gauge, pressure-vacuum indicator, vacuum indicator
Specification
Control pressure gauges 313 are produced according to standard EN837-1(3). Mainly used for simple pressure measurement of liquids, vapour and gases, that do not have a corrosive effect on copper alloys and its viscosity allows for measuring using bourdon pen mechanism.
Control pressure gauges are designed for certification, accurate measurements, etc. Supplied in accuracy class 1%; 0,6%; 0,4%; 0,25%. Environment temperature -40 up to 60°C, medium temperature Tmax 60°C. Pressure gauge dial comes with a very fine interval design and beginning from accuracy class 0,6% also with a mirror background.
Other design options on request special scale design, connection threads, etc. Control pressure gauges can be supplied with valid calibration certificates.
