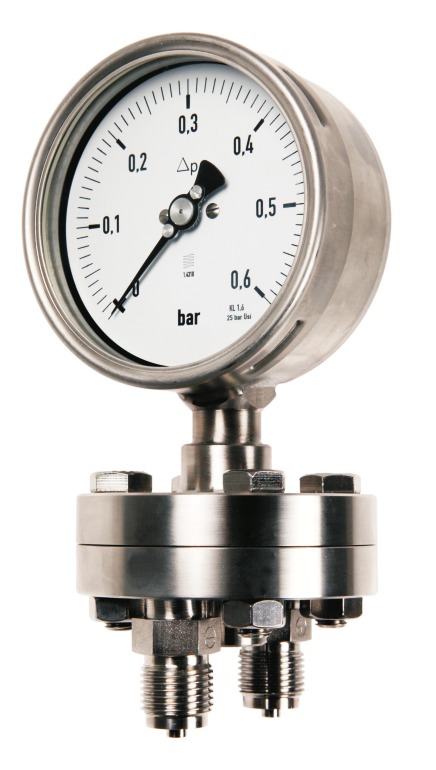

Industrial differential pressure gauge 5595/5596

B.1.24. - diameters 100, 160mm 2x bottom connection

Industrial differential pressure gauge 5595/5596



  • stainless steel case 17 240/1.4301
  • glass/safety glass inspection hole
  • connection 2x bottom
  • measure mechanism: CuZn and copper alloys, stainless steel 17 348/1.4571
  • membrane: stainless steel 17 240/1.4301


  • power engineering
  • chemical industry
  • petrochemical industry
  • hydraulics

Technical parameters

  • diameter: 100mm (5595), 160mm (5596)
  • measure ranges - differential pressure: 0-160mbar...0-10bar
  • max. static pressure: 25bar
  • connection threads: 2x G1/2
  • connection: paralel
  • pitch: 54mm
  • accuracy class: 1,6%
  • protection: IP 65


Industrial differential pressure gauges 5595/5596, produced in compliance with EN837-3 standard are suitable for lower pressures. Differential pressure gauges 5595/5596 can be used for pressure measurements of all liquids, vapours and gases, that do not have a corrosive effect on copper alloys and their viscosity allows the use of measuring mechanism.

Differential pressure gauges are supplied in sizes d=100, 160mm and are suitable into more demanding conditions while measuring aggressive mediums thanks to their resistance to organic dissolving agents. Environment temperature -20 up to 60°C, medium temperature Tmax 80°C.

Other design options on individual request - analog output signal 0-20mA and 4-20mA, increased overload capacity, special scale design, connection threads, etc.

Technical specification are subject to change without prior notice. Images are for information only
