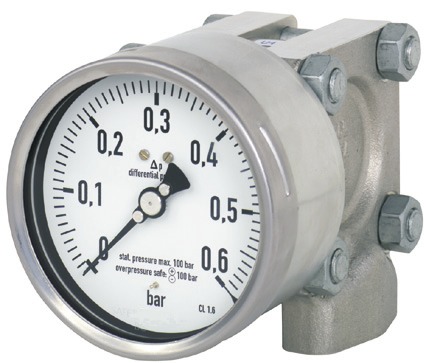

Heavy duty differential pressure gauge 732.14/2680

B.1.27. - diameter 100, 160mm 2x bottom connection

Heavy duty differential pressure gauge 732.14/2680



  • stainless steel case 17 240/1.4301/AISI 304
  • glass, safety glass inspection hole
  • connection 2x bottom
  • measurement mechanism: stainless steel 17 348/1.4571
  • seals: NBR, FPM


  • power engineering
  • air-conditioning
  • food industry
  • healthcare industry
  • chemical industry

Technical parameters

  • diameter: 100, 160mm
  • measure ranges: 0-60mbar...0-40bar
  • max. static pressure: 40bar, 100bar, 250bar, 400bar
  • connection threads: 2x G1/2 inner
  • accuracy class: 1,6% (732.14); 2,5% (762.14)
  • protection: IP 54, with glycerine filling IP 65


Differential pressure gauges 732.14/2680 are all-stainless steel heavy duty manometers designed into heavy and demanding conditions. They are produced in compliance with EN837-3 standard.

Differential pressure gauges 732.14/2680 can be used for pressure measurements of all liquids, vapours and gases, that do not have a corrosive effect on copper alloys and stainless steel class 17 348/1.4571 as well as their viscosity must allow the use of membrane measuring mechanism.

Environment temperature -20 up to 60°C, medium temperature Tmax 100°C. Differential pressure gauges are supplied in sizes d=100, 160mm. Pressure gauges may be supplied with glycerine filling, electric contacts and ATEX environment design. Other design options on request - special scale design, switching contacts, analog output, connection threads, etc.

Technical specification are subject to change without prior notice. Images are for information only
