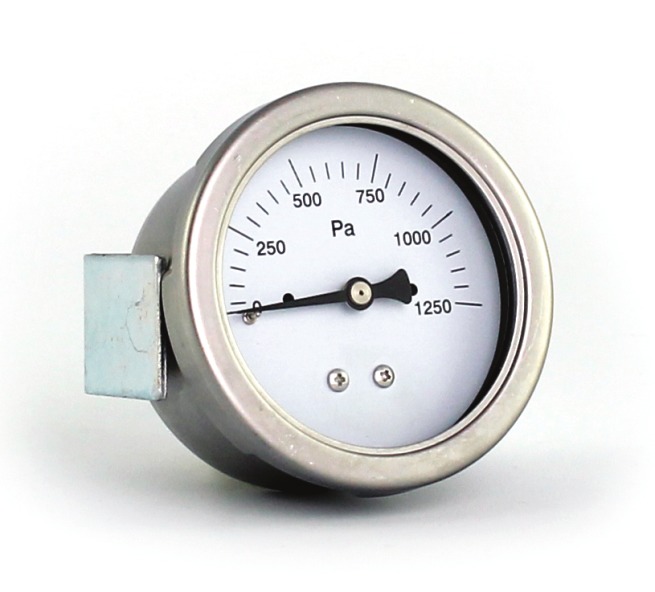

Differential pressure gauge 1630

B.1.28. - diameter 63 mm 2x back connection

Differential pressure gauge 1630



  • stainless steel case 17 240/1.4301
  • polycarbonate inspection hole
  • connection 2 x back
  • measurement mechanism: CuZn and copper alloys


  • air-conditioning
  • pneumatic appliances
  • light industry

Technical parameters

  • diameter: 63mm
  • measure range - differential up to 2,5kPa
  • max. static pressure: 40kPa
  • connection threads: 2x G1/4,
  • hose connection: d =6, d=8, d=10mm
  • accuracy class: 2,5%
  • protection: IP 65


Differential pressure gauges type 1630 are suitable for very low differential pressures and static pressures up to 40 kPa. They are produced in compliance with EN837-3 standard and can be used for measuring of all vapour and gases, that do not have corrosive effect on copper alloys.

Differential pressure gauges are supplied in size 63mm and are suitaible into conditions, where it is necessary to measure low differential pressures up to 2,5kPa. Environment temperature -40 up to 60°C, maximum medium temperature 60°C.

Other design options on request special scale design, connection threads, etc.

Technical specification are subject to change without prior notice. Images are for information only
