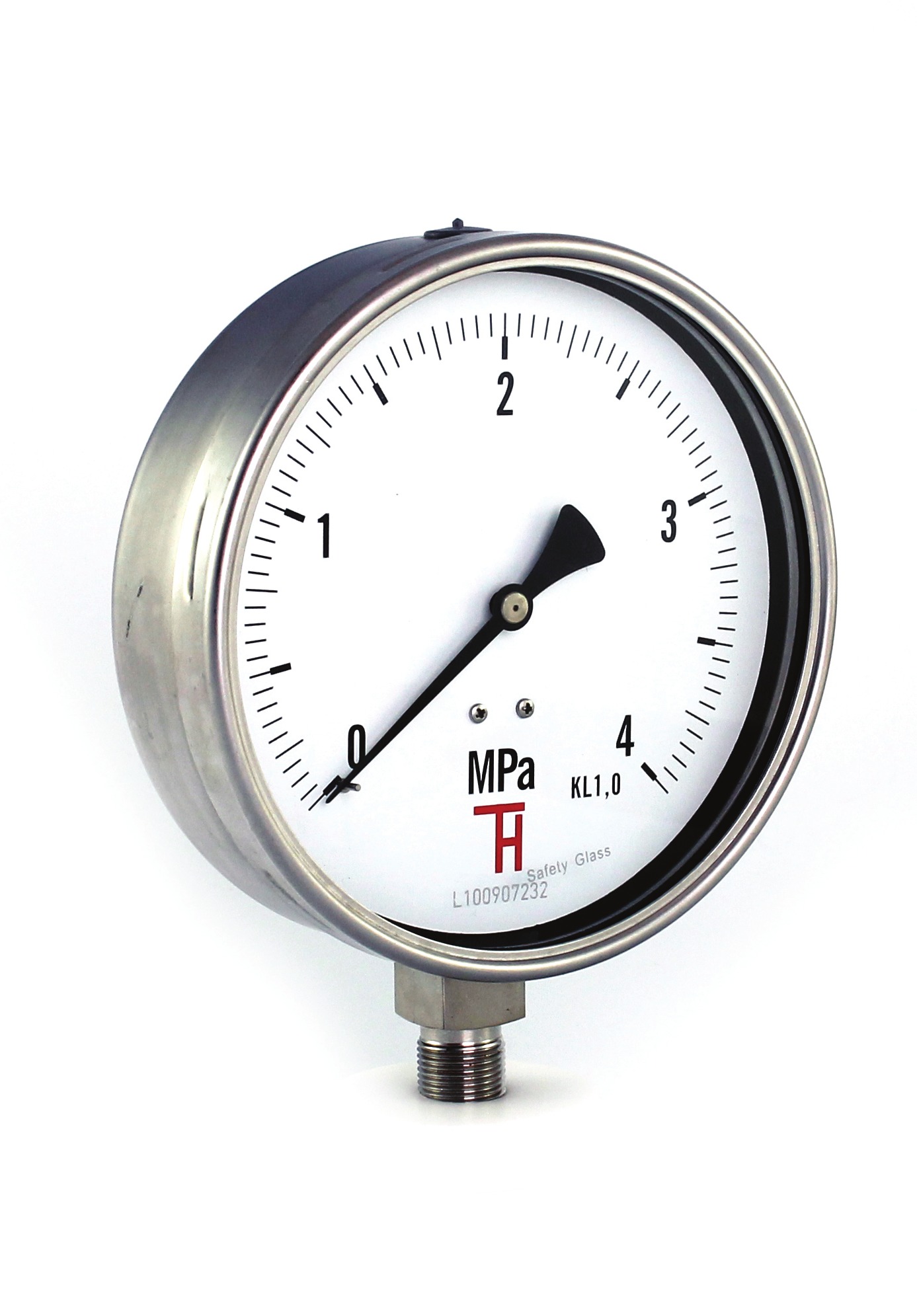

All stainless steel pressure gauge with bourdon pen

B.1.29. - diameters 63, 100, 160mm bottom, back connection

Download

• Datasheet

Description

• bayonet case/encased stainless steel 17 240/1.4301
• safety glass/acrylate inspection hole
• back/bottom connection: stainless steel 17 348/1.4571
• measurement mechanism: stainless steel 17 348/1.4571

Application

• food industry
• petrochemical industry
• farmaceutical industry
• power engineering

Technical parameters

• diameter: 63, 100, 160mm
• measure range: 0-60, 100, 160, 250, 400, 600kPa 0-1; 1,6; 2,5; 4; 6; 10; 16; 25...700MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa -100+500, -100+300, -100+150, -100+150kPa
• scale: Pa, bar, individual
• connection threads: M12x1,5, M20x1,5 (G1/4, G1/2, NPT)
• accuracy class: d. 63mm 1,6% d. 100, 160mm 1%
• design: pressure gauge, pressure-vacuum indicator, vacuum indicator

Specification

All stainless steel pressure gauges with bourdon pen for measuring pressures of values up to 100MPa (for d. 63mm), up to 400MPa (for d.100mm) and up to 700MPa (for d.160mm).

Pressure gauges are produced in compliance with EN837-1 standard and are suitable fo measurements of all non-viscous and non-agressive liquids, vapour and gases that do not have corrosive/descructive effect on stainless steel material cl.17 348/1.4571 of the measurement mechanism.

Other options of design on request special scale design, connection threads, back/front flange, silicone or glycerine damping (mark G), etc.
