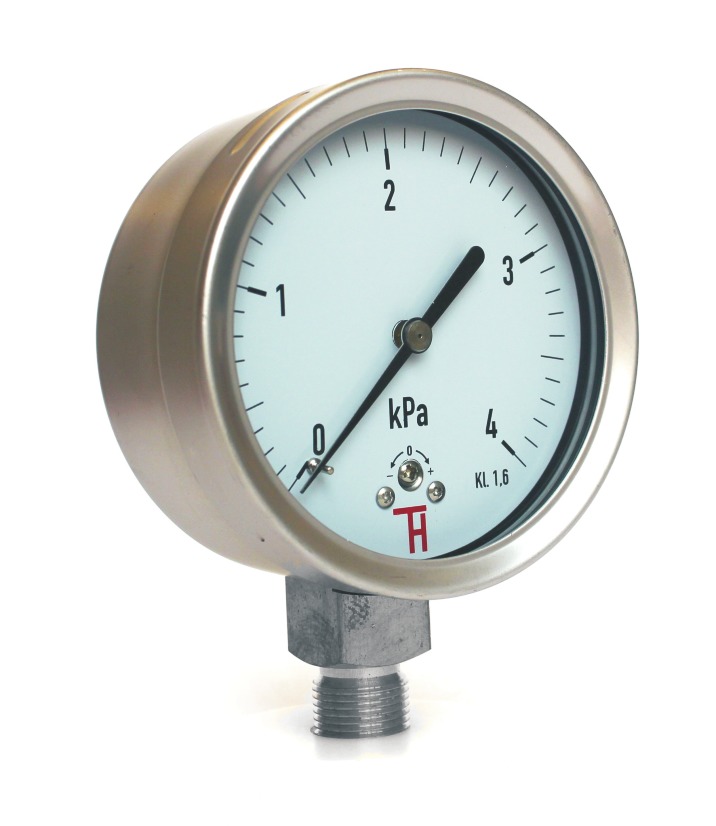

All stainless steel low pressure gauge

B.1.30. - diameters 63, 100, 160mm bottom and back

All stainless steel low pressure gauge

Download

Description

  • case encased/ bayonet stainless steel 17 240/1.4301
  • acrylate, safety glass inspection hole
  • connection: bottom/back stainless steel 17 348/1.4571
  • measurement mechanism: stainless steel 17 348/1.4571

Application

  • food industry
  • petrochemical industry
  • farmaceutical industry
  • power engineering

Technical parameters

  • diameter: 63, 100, 160mm
  • measure ranges: 0-250, 400, 600Pa 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 40kPa, -150+250, -200+400, -400+600Pa, -0,6+1; -1+1,5; -1,5+2,5; -2+4; -4+6; -6+10; -10+15; -15+25kPa -400-0, -600-0Pa -1-0; -1,6-0; -2,5-0; -4-0; -6-0; -10-0; -16-0; -25-0; -40-0kPa
  • connection thread: M12x1,5, M20x1,5 (G1/4, G1/2)
  • accuracy class: 1,6%, 1%
  • design: pressure gauge, pressure-vacuum indicator, vacuum indicator
  • special scale design

Specification

All stainless steel low pressure gauges are produced in compliance with EN837-3 standard.

Pressure gauges are suitable for measurements of all non-viscous and non-agressive liquids, vapour and gases, that do not have corrosive/ destructive effect on stainless steel class 17 348/1.4571 using measurement mechanism of capsule membrane.

Other options of design on individual request - special scale design, connection threads, back/front flange, glycerine or silicone damping (mark G), etc.


Technical specification are subject to change without prior notice. Images are for information only
