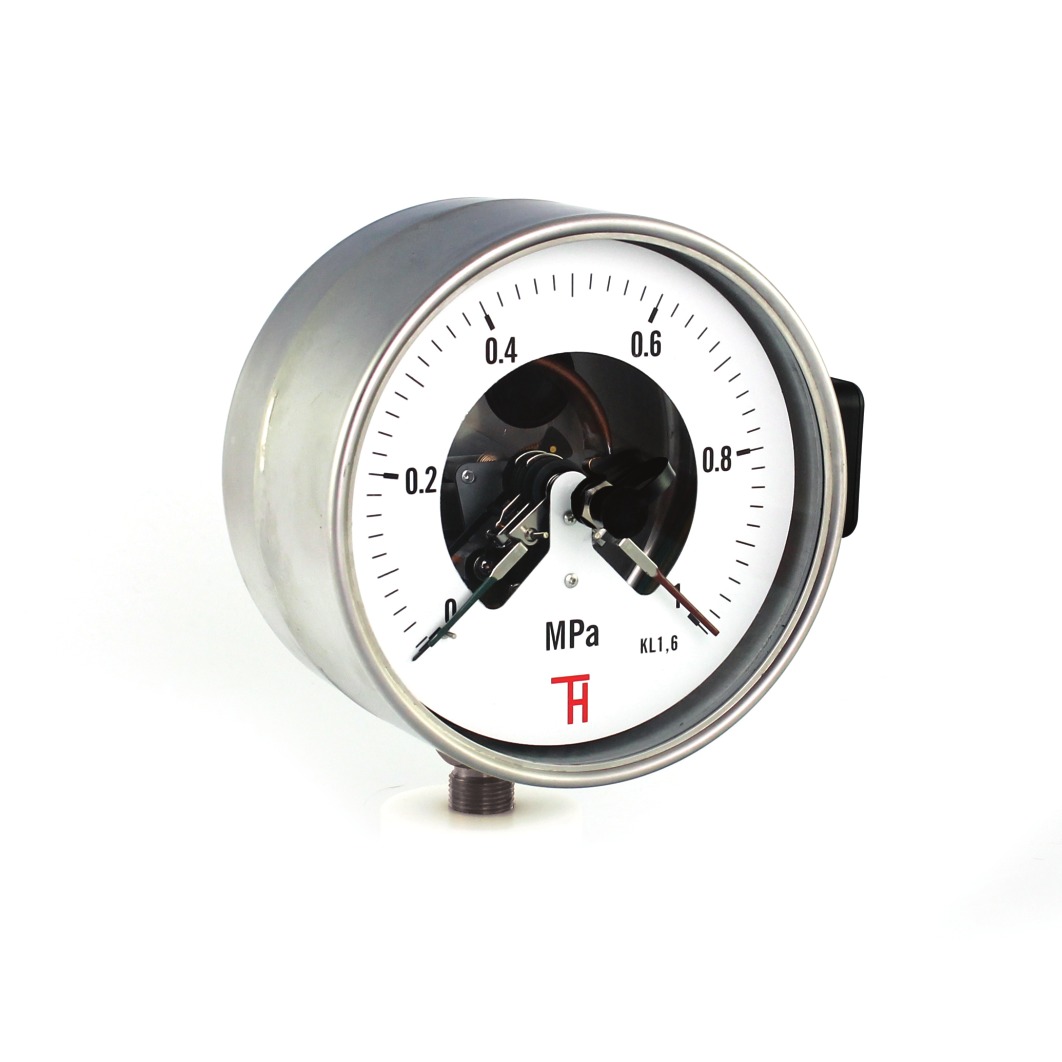

All-stainless steel contact pressure gauge

B.1.31. - diameters 100, 160mm bottom, back connection

Download

• Datasheet

Description

• stainless steel case 17 240/1.4301
• inspection hole: glass, safety glass
• connection: bottom, back stainless steel 17 348/1.4571
• measurement mechanism: stainless steel 17 348/1.4571

Application

• food industry
• petrochemical industry
• farmaceutical industry
• power engineering

Technical parameters

• diameter: 100, 160mm
• measure ranges: 0-60, 100, 160, 250, 400, 600kP 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 40; 60; 100; 160MPa -0,1+2,4; -0,1+1,5; -0,1+0,9MPa, -100+500, -100+300, -100+150, -100+0kPa
• connection threads: M20x1,5, G1/2
• accuracy class: 1,6%, 1%
• design: pressure gauge, pressure-vacuum indicator, vacuum indicator
• contact design: switch-on, switch-off, throw-overinductive

Specification

All-stainless steel contact pressure gauges are used in technical practice where it is necessary to work within some limited band of pressure span.

Pressure gauges are produced in compliance with EN837-1 standard. Pressure gauges are suitable for measurement of all aggressive mediums, that do not have a corrosive/ destructive effect on stainless steel class 17 348/1.4571.

Pressure gauges have a standard equipment of M20x1,5 or G1/2 connection, switch-on/switch-off magnetic contact, may be diversified by throw-over or inductive contact design. Possible choice of glycerine or silicone damping.
