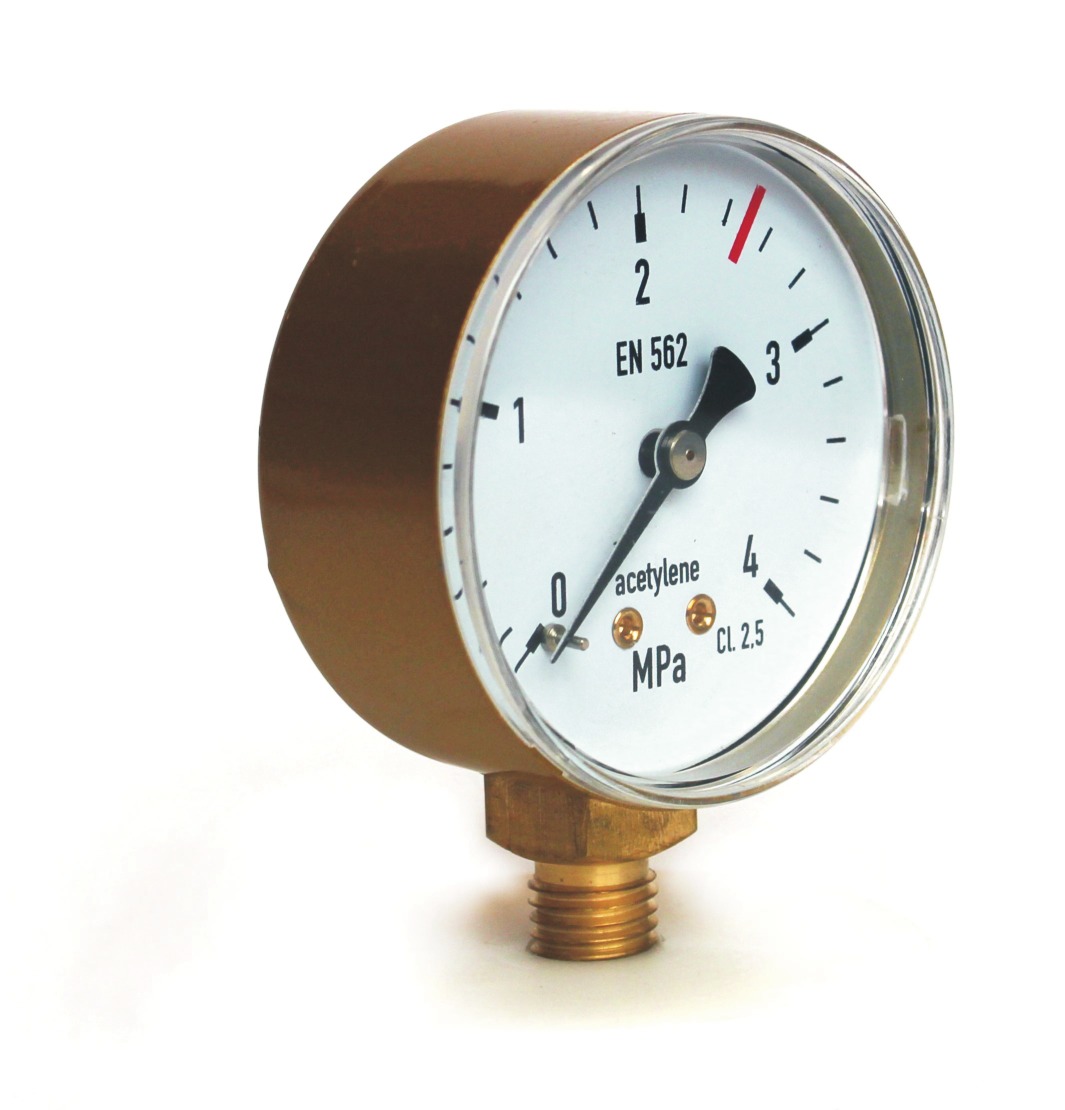

Welding pressure gauge 404

B.1.39. - diameter 63mm bottom, back connection

Welding pressure gauge 404



  • metal case with pressurized vent
  • acrylate inspection hole, twofold edging
  • connection bottom, back CuZn and copper alloys
  • measurement mechanism CuZn and copper alloys


  • industrial gases distribution
  • industrial gases storing
  • reducing valves

Technical parameters

  • diameter: 63mm
  • measure ranges: 0-100, 160, 250, 400, 600kPa 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 31,5; 40MPa
  • scale: Pa, bar
  • connection threads: G1/4, M12x1,5 (G1/8, G1/2, M10x1)
  • accuracy class: 2,5%


Welding pressure gauges 404 are produced in compliance with EN562 standard. Mainly used for simple pressure measurements of industrial gases, that require oxygen purity, that do not have corrosive effect on copper alloys and their viscosity allows for use of measurement mechanism with bourdon pen.

Welding pressure gauges are suitable for measurements of industrial gases (acetylene, oxygen). Supplied in industrial gases design or universal design (NEUTRAL).

Environment temperature -40 up to 60°C, maximum medium temperature Tmax 60°C. Other design options on individual request special scale design, connection threads, etc.

Technical specification are subject to change without prior notice. Images are for information only
