Pressure gauge assembly THCR-II a for kryo use

B.1.43. - diameter 100, 160mm with multifunction valve

Pressure gauge assembly THCR-II a for kryo use

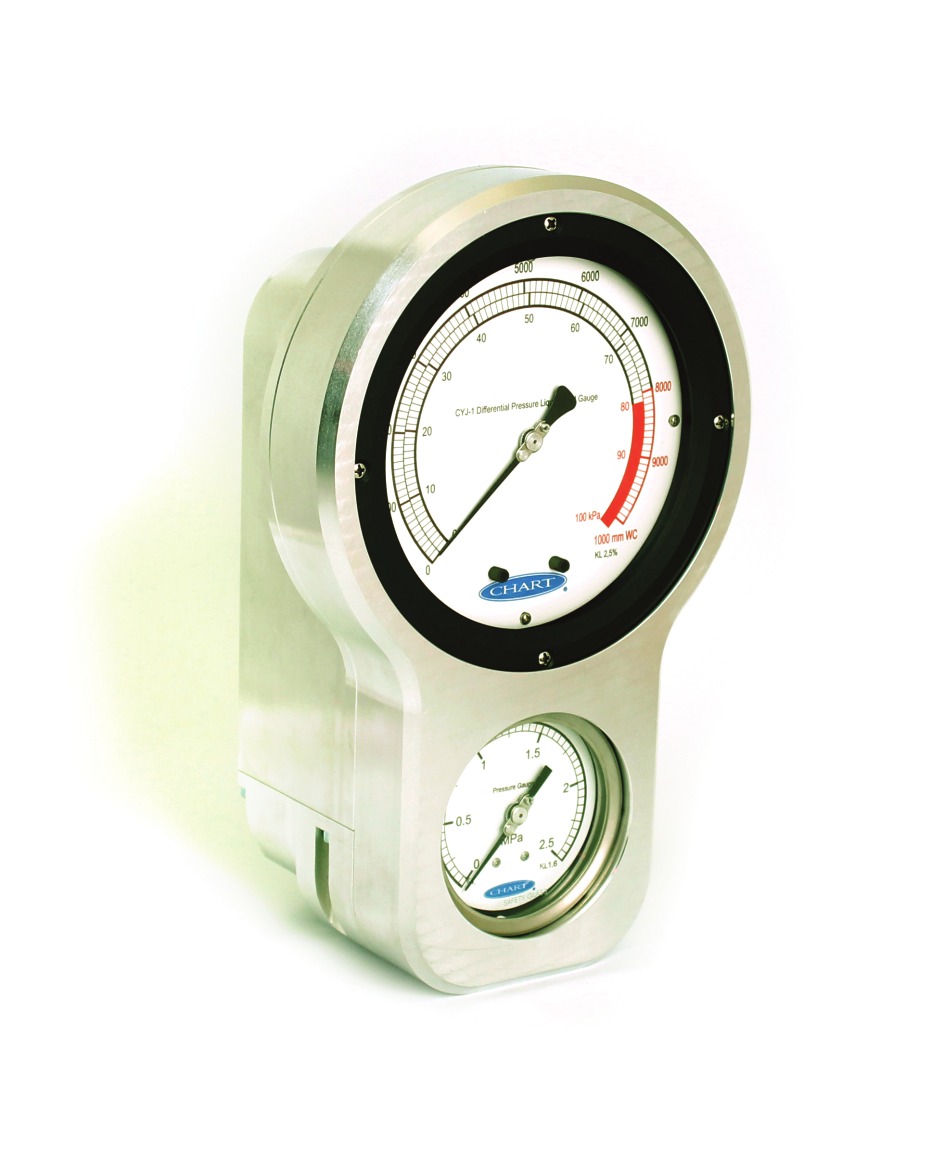

Model THCR-II A is a combined differential pressure gauge, used for indication of differential pressure in cryogenic containers that contain liquefied gases. THCR-II A contains three basic elements - differential pressure gauge, static pressure gauge and multifunction valve. All set is placed in an aluminum heavy-duty case for increased protection of the entire device.

MULTIFUNCTION VALVE: Replaces 4 original valves on the container. Broken differential or static pressure gauge may be replaced without isolation gas pipeline, only by gradual adjusting. When using multifunction valve, the whole process is simplified, random step may be eliminated and thus the differential pressure gauge is protected and its life-time is prolonged. Also the area of pipeline installation my be reduced compared to the original 4-valve design.


  • indicates differential pressure between bottom and top layer of liquid in a container
  • model THCR­II
  • 160mm/100mm
  • max. static pressure 40 bar
  • differential ranges: 0-15kPa (0-1,5m H2O) 0-20kPa (0-2,0m H2O) 0-30kPa (0-3,0m H2O)
  • accuracy: ±2,5% of the range
  • oxygen purity
  • connection M18X1.5 (metric) or Ľ - 18 NPTF


  • measures pressure of the top vapour phase in a container
  • model 322ROB 100mm
  • pressure ranges: 0-1; 1,6; 2,5; 4; 6; 10; 16; 25; 40bar
  • accuracy: 1,6% from all range
  • oxygen purity
  • connection M20x1,5


  • transducer for static pressure 4-20mA, 0-10V
  • transducer for differential pressure (layer) 4-20mA, 0-10V
  • switching contacts Min/Max
  • individual procedural connection threads M, G, NPT design inner, outer, welding tubular connection
  • mounting flanges
Technical specification are subject to change without prior notice. Images are for information only
