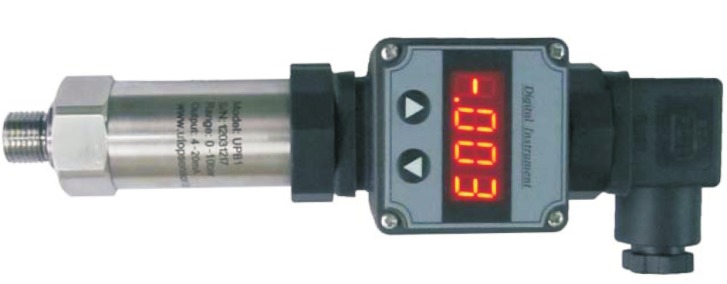

Standard pressure transducer series THPB1, THIPB1 (HART)

B.2.01.

Standard pressure transducer series THPB1, THIPB1 (HART)

Download

Description

  • completely stainless steel construction
  • suitable for low pressure and vacuum measurements
  • automatic testing, laser zero setting
  • resistant to high-frequency shocks and interference
  • resistant to corrosion, impact and wear
  • protection from reverse polarity, current protection, overvoltage protection
  • connector material: 17 248/ 1.4541
  • membrane material: 17 348/ 1.4571

Application

  • chemical industry
  • hydrology
  • power engineering
  • metallurgy

Technical parameters

  • measuring ranges: -1-0-...0,1-1000bar
  • output signal: 4-20mA; 0-5V; 0-10V; 1-5V; 0,5-4,5V 4-20mA HART/THIPB1
  • connection: G1/2 (G1/4, M12x1,5, M20x1,5,1/2 NPT)
  • supply voltage: 12-36V DC
  • accuracy class: 0,1% FS; 0,25% FS (standard); 0,5%FS
  • pressure type: relative, absolute

Specification

Pressure transducer THPB1 works on the principle of piezo-resistant technology, as a sensor unit THPB1 uses a stainless steel membrane.

Transducers cylindric case is made of stainless steel, including process connection.

THPB1 is fully tested on computer and zero value is set by means of laser with high sensitivity in wide range of temperature ranges.

Some of the assets of the transducer are its integrated construction, sturdy and heavy-duty design, high accuracy and long-term stability. THPB1 is suitable for pressure measurements in most of industrial operations, widely used for pressure measuring in chemical industry, metallurgy, power engineering, hydrology, etc.


Technical specification are subject to change without prior notice. Images are for information only
