Pressure transducer with high frequency response series THPB4, THIPB4 (HART)

B.2.04.

Pressure transducer with high frequency response series THPB4, THIPB4 (HART)

Download

Description

  • monitoring frequency based on MEMS chip
  • high accuracy and stability
  • immediate response

Application

  • petrochemical industry
  • food industry
  • hydraulics
  • chemical industry

Technical parameters

  • measuring ranges: 0-0,1..1000bar
  • output signal: 0-5V 4-20mA HART/THIPB4
  • connection: G1/4 ( M12x1, M20x1,5)
  • supply voltage: 12-32V DC
  • accuracy class: 0,1%FS, 0,25% FS ; 0,5%FS (standard)
  • pressure type: relative, absolute

Specification

Pressure transducer THPB4 works with a high frequency pressure sensor and a special closed circuit of high frequency characteristics.

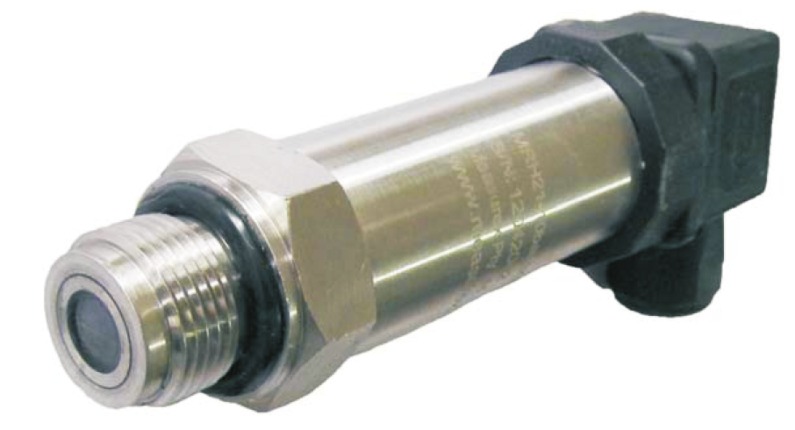

THPB4 works on high frequency of monitoring (max. 1MHz). Transducers cylindric case is made of stainless steel, including process connection.

Some of the assets of the transducer are its sturdy and heavy-duty design, high accuracy and long-term stability. THPB4 is suitable for dynamic measuring and monitoring of pressures in real time. Mainly used in chemical, petrochemical, oil industry and in military research, explosive experiments, mechanical and hydraulic testing, mechanization of measuring devices and developments of mechanical constructions.


Technical specification are subject to change without prior notice. Images are for information only
