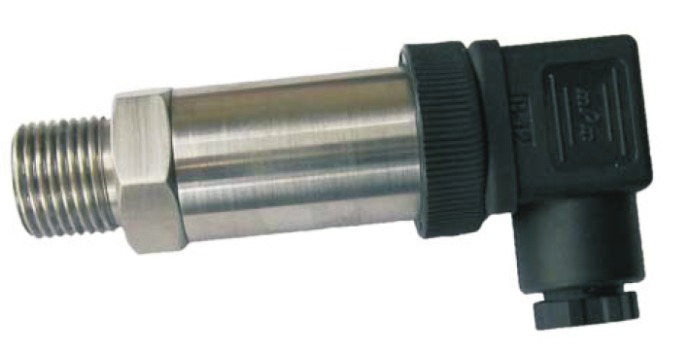

Pressure transducer for high pressures series THPB7, THIPB7 (HART)


Pressure transducer for high pressures series THPB7, THIPB7 (HART)



  • high accuracy, high tightness
  • wide range of applications, long life-time
  • long-term stability
  • resistance to corrosion, abrasion and impact


  • metallurgy
  • power engineering
  • hydraulics
  • chemical industry
  • health-care

Technical parameters

  • measuring ranges: 0-10..5000bar
  • output signal: 4-20mA, 0-5V, 0-10V, 1-5V, 4-20mA HART/THIPB7
  • connection: G1/4 (G 1/ 2, M20x1,5, M22x1,5)
  • supply voltage: 12-36V DC
  • accuracy class: 0,1%FS, 0,25% FS ; 0,5%FS (standard)
  • pressure type: relative, absolute


Pressure transducer THPB7 uses advanced metal foil as a sensor element. THPB7 uses Wheatstone bridge to convert pressure load into mV electric signal, which is then transfered onto a standard output. Thanks to the small size of the sensor unit it may be used in various versions, either with front membrane or with opened connection. Transducers cylindric case is made of stainless steel, including process connection. THPB7 is fully tested on computer and zero value is set by means of laser that enables high sensitivity in wide range of temperatures. Some of the assets of the transducer are the integrated construction, its sturdy and heavy-duty design, high accuracy and long-term stability. THPB7 is designed for medium and high pressure measurements up to 5000bar. THPB7 is suitable for measurements in most industrial applications, used mainly in chemical, metallurgical industry, power engineering, hydraulics, health care, etc.

Technical specification are subject to change without prior notice. Images are for information only
