Pressure transducer for high temperatures series THPB8, THIPB8 (HART)

B.2.06.

Pressure transducer for high temperatures series THPB8, THIPB8 (HART)

Download

Description

  • suitable for high temperature measurements (max. 180°C)
  • reliable performance, good long-term stability
  • resistance to corrosion and vibrations
  • protection from reverse polarity, current protection, overvoltage protection

Application

  • metallurgical industry
  • power engineering
  • food industry
  • health care
  • chemical industry

Technical parameters

  • measure ranges: -1-0...0,04- 1000bar
  • output signal: 4-20mA, 1-5V, 4-20mA HART/THIPB8
  • connection: G1/4 ( G1/2, M20x1,5, 1/4 NPT)
  • supply voltage: 10-36V DC
  • accuracy class: 0,25% FS ; 0,5%FS (standard)
  • pressure type: relative, absolute

Specification

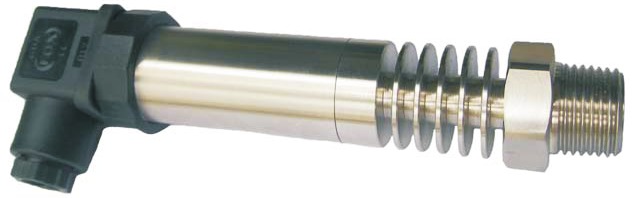

Pressure transducer for high temperatures THPB8 is designed for measurements of high temperature mediums. THPB8 uses a special sensor, that may be in direct contact with the monitored medium. This technology enables compact size of THPB8.

Transducers cylindric case is made of stainless steel, including cooling and process connection. THPB8 is fully tested on computer and zero value is set by means of laser with high sensitivity in wide range of temperature ranges.

Some of the assets of the transducer are high accuracy, high temperature resistance up to 180 °C and high stability of measurement independant on temperature change. THPB8 is suitable for pressure measuring in most industrial applications with high liquid and gases temperatures, in aviation, health care, power engineering, food and chemical industry.


Technical specification are subject to change without prior notice. Images are for information only
