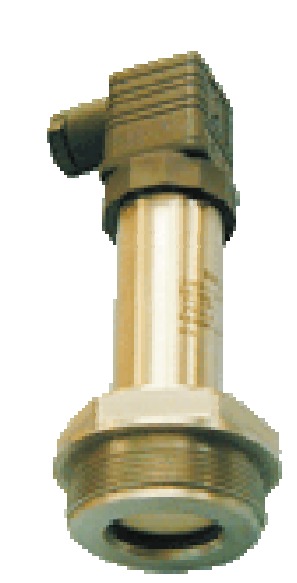

Capacity pressure transducer with ceramic membrane series THPB10, THIPB10 (HART)


Capacity pressure transducer with ceramic membrane series THPB10, THIPB10 (HART)



  • high resistance to wear and shocks
  • long-term stability
  • protection from reverse polarity, current protection,
  • overvoltage protection


  • metallurgical industry
  • power engineering
  • hydrology
  • chemical industry

Technical parameters

  • measure ranges: -2,5-0,5...0,5- 5kPa -10-1...0-10kPa, 0-2...20kPa
  • sensor ranges: 0-5kPa, 0-10kPa, 0-20kPa
  • output signal: 4-20mA, 4-20mA HART/THIPB10
  • connection: G1/2 ( M20x1,5, M42x1,5)
  • supply voltage: 12-30V DC
  • accuracy class: 0,5%FS; 1%FS (standard)
  • pressure type: relative, absolute


Pressure transducer THPB10 works on principle of pressure measuring using capacity technology with ceramic sensor.

THPB10s cylindric case is made of stainless steel, including process connection.

Pressure transducer is designed for measurements of low pressures in corrosive and aggressive mediums and in demanding conditions.

THPB10 uses high quality ceramic sensor and special amplifier. THPB10 has an integrated construction, long-term stability, high anti-corrosive resistance and high resistance to pressure shocks.

THBP10 is suitable for measuring and control of low pressures in chemical industry, metallurgy, power engineering, hydrology, etc.

Technical specification are subject to change without prior notice. Images are for information only
