Capacity pressure transducer for ATEX environment series THPB11, THIPB11 (HART)

B.2.09.

Capacity pressure transducer for ATEX environment series THPB11, THIPB11 (HART)

Download

Description

  • ATEX - class EXIICT5
  • resistant to pressure overloading and temperature change
  • resistance to corrosion, wear, impact
  • dustproof

Application

  • metallurgical industry
  • power engineering
  • chemical industry

Technical parameters

  • measure ranges: -1bar...0-5mbar...1000bar
  • output signal: 4-20mA,0-5V, 0-10V, 1-5V 4-20mA HART/THIPB11
  • connection: G1/2 ( M20x1,5)
  • supply voltage: 12-36V DC
  • accuracy class: 0,25%FS, 0,5%FS (standard)
  • pressure type: relative, absolute
  • environment temperature: -20+80 °C
  • protection: IP65

Specification

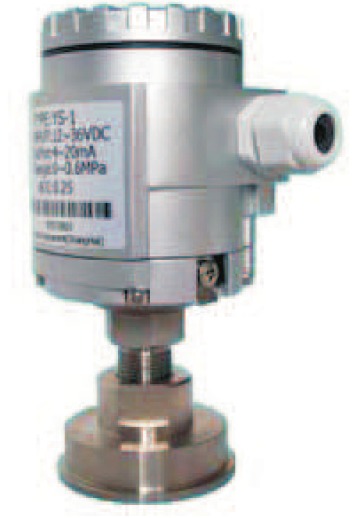

Pressure transducer THPB11 works on the principle of capacity technology with ceramic membrane. Electronics case is made of aluminium cast.

Thanks to use of dry technology (without using transfer liquid) of pressure measurement and sturdy electronic part, known as SMT technology, the transducer shows exceptional technical parameters of ceramic-capacity pressure transducers.

Thanks to this construction THPB11 are usable in ATEX environment (EXIICT5). THPB11 is suitable for pressure measurement in most industrial applications. Widely used in operations, where ATEX resistance is required, mainly in chemical industry, metallurgy and power engineering.


Technical specification are subject to change without prior notice. Images are for information only
