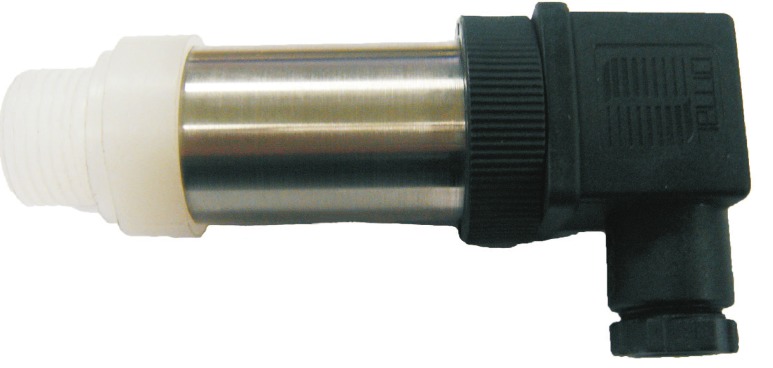

Pressure transducer with increased resistance to corrosion series THPB3-c, THIPB3-c (HART)
B.2.10.
Description
- used for aggressive mediums with corrosive effects
- PVDF - material of wetted parts of ceramic membrane (96% Al203)
Application
- food industry
- power engineering
- petrochemical industry
- health care
Technical parameters
- measure ranges: 0-1...200bar
- output signal: 4-20mA,0-5V, 0-10V, 1-5V 4-20mA HART/THIPB3-c
- connection: G1/4 (G1/2, M20x1,5, 1/2NPT)
- supply voltage: 12-36V DC
- accuracy class: 0,25%FS, 0,5%FS (standard)
Specification
Pressure transducer THPB3-c with increased resistance to corrosion comes from the same technical basis as transducer THPB3. Pick-up membrane THPB3-c is ceramic, the inbuilt wetted parts are separated by a separating membrane made of polyvinylidenfluorid (PVDF), thanks to which this model has increased resistance to corrosion 96% Al203.
Transducers cylindric case is made of stainless steel. THPB3-c is fully tested on computer and zero value is set by means of laser with sensitivity in wide range of temperatures.
THPB3-c is designed for pressure measurement of corrosive mediums in most industrial applications, widely used for pressure measurement in petrochemical industry, power engineering, food industry, health care, hydrology, etc.
Technical specification are subject to change without prior notice. Images are for information only
