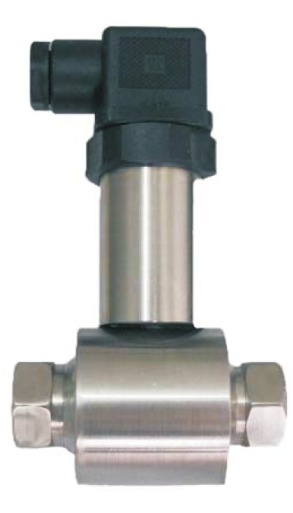

Pressure transducer for differential pressure series THPB5, THIPB5

B.2.12.

Download

• Datasheet

Description

• good value for money, long-term stability
• resistance to overloading up to 200%, to overpressure up to 100%
• protection from reverse polarity, current protection, overvoltage protection
• easy installation
• integrated construction in stainless steel design

Application

• food industry
• power engineering
• health care
• petrochemical industry

Technical parameters

• measuring ranges: 0-0,1...35bar
• output signal: 4-20mA, 0-5V, 0-10V; 1-5V; 0,5-4,5V 4-20mA HART/THIPB5
• connection: G1/4 inner thread ( M12x1,5)
• accuracy class: 0,1% FS ; 0,25%FS (standard)
• pressure type: differential

Specification

Pressure transducer of differential pressure works on the principle of piezo-resistant technology, as measure element it uses a differential sensor with insulated stainless steel membrane.

Transducers cylindric case is made of stainless steel, including process connection.

Some of the assets of the transducer are its integrated construction, heavy duty and sturdy design, high accuracy and long-term stability.

THPB5 is suitable for pressure measuring and regulation of corrosive mediums in most industrial applications, in petrochemical industry, power engineering, health care, hydraulics, airconditioning, etc.
