Display unit series ZED 601

B.2.14. - for connector DIN 43650

Display unit series ZED 601



  • 4 - digit 3,5LCD temperature display
  • simple handling and operation


  • power engineering
  • petrochemical industry
  • heating industry

Technical parameters

  • dimensions: 42x42x42 mm
  • output signal: 4 - 20mA
  • display accuracy: 0,1% FS
  • temperature shift: 0,1% FS
  • el. connection: DIN 43650
  • accuracy class: 0,2% FS (standard)
  • display accuracy: 0,1% FS
  • protection: IP65

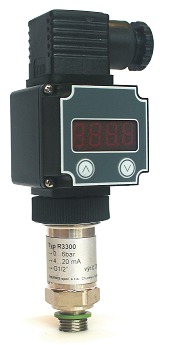

Display unit ZED601 is a microprocessor display unit built into current loop of transducer 4-20mA, does not require any additional power supply. May be connected to any kind of transducer using connector DIN 43650.

ZED601 is equipped with heavy duty plastic cover and is mounted directly between power source and transducer. Contains of 4-digit 3,5 display, height 7,6mm, turning in 90 degrees angle.
