Digital pressure gauge series THIY6


Digital pressure gauge series THIY6



  • LCD display with high resolution
  • min/max pressure value during measure process
  • choice of units: Mpa, psi, bar, kPa, kg/cm2
  • 1-15min. automatic shut-off function


  • power engineering
  • petrochemical industry
  • heating industry

Technical parameters

  • measuring ranges: -1-0...0,1-1000bar
  • display range: -1999-9999
  • overloading: 150% FS
  • connection: G1/2 (G1/4, M20x1,5, ˝NPT)
  • accuracy class: 0,1% FS; 0,25%FS (standard);0,5%FS
  • pressure: relative, absolute

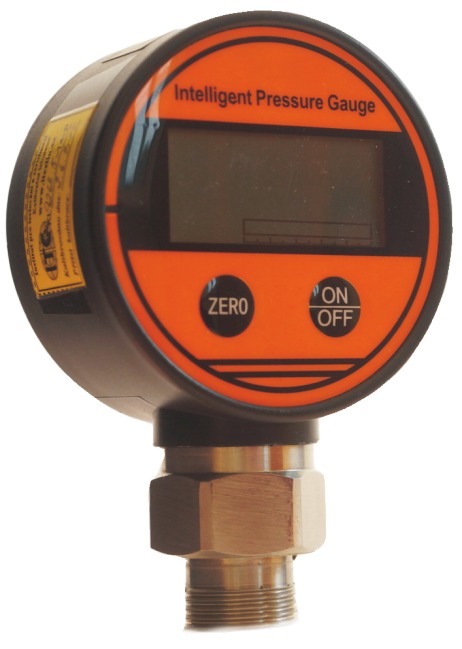

Digital pressure gauge THIY6 is designed for high accuracy pressure measurements of liquids and gases. Main assets of this device are all-stainless steel design, 4-digit LCD display, low power consumption, long-term resistance to overloading. Flexible use of digital pressure gauge, its setting and operation is very easy, safe and reliable.

THIY6 pressure gauge is widely used for pressure measurements in petrochemical industry, power engineering, heating industry, etc.

Technical specification are subject to change without prior notice. Images are for information only
