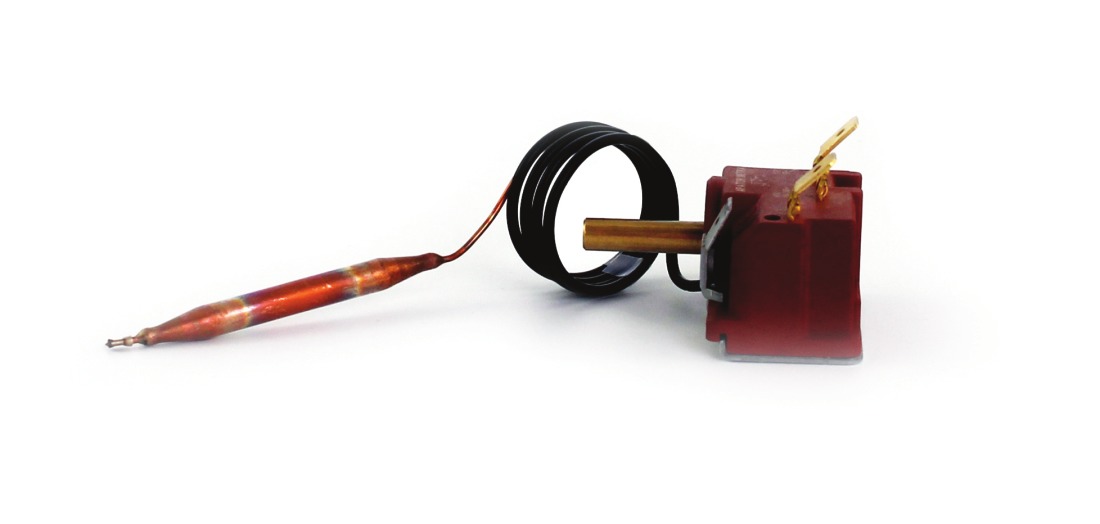

Thermoregulator series KR 10, KR 20
C.1.07. - capillary length 500, 1000mm load up to 16A
Description
- design: switch off or throw-over terminal
- connection terminal: flat pins 6,3x0,8 according to ČSN EN 612 10
- number of terminals: 2/3
Technical parameters
- regulatory range: 7-77°C (KR 10, KR 11) 35-95°C (KR 20, kr 21)
- switch off design: KR 10, KR 20
- throw-over design: KR 11, KR 21
- switching temperature difference: 2-6K
- nominal current: 16/10A
- nominal voltage: 240/400V
- max. sensor temperature: 90°C (KR 10, KR 11) 110°C (KR 20, KR 21)
- protection: IP 00
Specification
Thermoregulators (thermostats) are single-pole temperature regulators, whose function is based on principle of fluid expansibility. They consist of two main parts: switch mechanism and capillary temperature sensor.
Thermoregulators enable phaseconductor micro-disconnection.
They may signalize electric load micro-disconnection. Under normal working conditions the capillary regulators keep appliances temperature or its parts temperature within desired range, preset by the user, by automatic switching of the electric circuit.
Capillary regulators are not designed for disconnection of an appliance from electric circuit. The obligatory parameters of the capillary regulator are determined in technical conditions TP MS 030/01.
