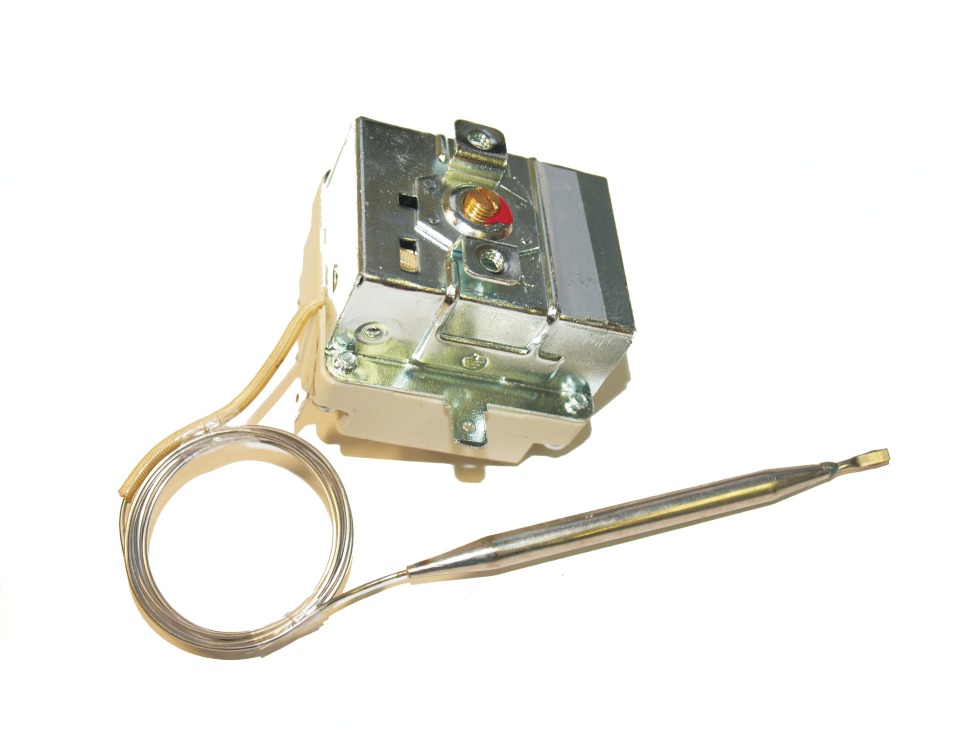

Three-phase thermal fuse series MMG
C.1.14. - manual reset load 16A/400V
Description
- design: manual reset
- capillary material: stainless steel with PVC protection
- sensor material: stainless steel
- connection: A 6,3 clamp stirrup
Technical parameters
- switch-off temperature: 250, 315°C
- contact load: 16A, 400V
- sensor diameter: 6mm
- capillary length: 920mm
- protection: IP 00
Specification
Three-phase thermal fuses when the sensors environment temperature reaches the switch-off temperature preset by the manufacturer, electric circuit is disconnected, this way the fuse protects a device from overheating. Another start of the system must be done mechanically.
Thermal fuses are suitable mainly for hot water boilers and other heating devices as a protection device. Applicable for temperature limitation of liquid, gas and solid materials.
Technical specification are subject to change without prior notice. Images are for information only
