Maximum temperature limiter
C.1.21. - room, capillary, stem
Description
- compact design
- connection by clamps on the switch or using connector (except for Ex design and switch B)
Application
- heating
- hydraulics
- air-conditioning
Technical parameters
- range: -40+210°C in 7 ranges (type 61 127 - capillary), -40+140°C in 5 ranges (type 61 135 - stem), -40+60°C in 4 ranges (type 61 112 - room)
- el. load: 250V/10A, 250V/2A, =250V/0,1A =48V/0,2A
- shocks during operation: f=10-55Hz, sa=up to 0,15 mm
- protection: IP 65
Specification
Temperature limiters are dedicated for regulatory circuits, where they interfere by switching el. contacts when the increasing temperature is exceeding the limiting value. By pressing the RESET button they are brought into stand-by mode. The required value from within the range is set by a screw. Environment temperature of the regulator is -40 +60°C.Capillary - mainly used for protection of devices against temperature over-loading with option of limiters mounting in place of temperature protection using a well, which is an integral part of the limiter.

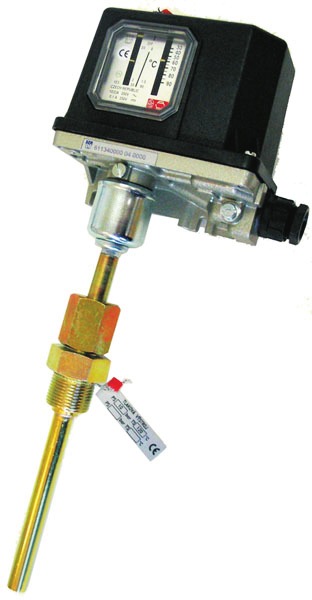

Stem - mainly used for device protection against temperature over-loading with option of placing the limiter outside the measured medium.Capillary and stem temperature limiters may on request be equipped with a well in brass or stainless steel design with threads M27x2 or G3/4, lugs with threads M27x2 or G3/4 and wall rubber grommets.Room mainly used for room protection against temperature over-loading.
