Temperature regulator
C.1.20. - room, capillary, stem
Description
- compact design
- connection using clamps on the switch or connector (except for Ex design and switch B)
Application
- heating
- hydraulics
- air-conditioning
Technical parameters
- ranges: -40+60°C in 5 ranges (type 61 113 - room) -40+210°C in 7 ranges (type 61 126 - capillary) -40+140°C in 5 ranges (type 61 134 - stem)
- el. load: 250V/10A, 250V/2A, cos f 0.6-0.3 =250V/0,1A =48V/0,2A
- shocks during operation: f=10-55Hz, sa=do 0,15mm
- protection: IP 65
Specification
Stem thermoregulators are used mainly for regulation and indication of temperatures with option of regulators mounting directly in area of temperature measurement by means of well, which is an integral part of the regulator. The well may be supplied in brass or stainless steel design with threads M27x2 or G3/4, lugs with threads M27x2 or G3/4 and wall rubber grommets.

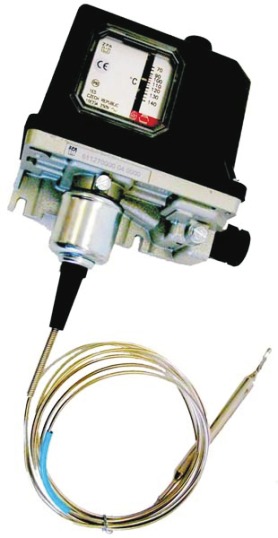

Capillary thermoregulators are used mainly for regulation and indication of temperatures with the option of placing the regulator away from the regulated medium. A well may be supplied on order request in brass or stainless steel design with threads M27x2 or G3/4, lugs with threads M27x2 or G3/4 and wall rubber grommets.
Room thermoregulators are used mainly for simple regulation and indication of temperatures in rooms (lounges, vestibules, etc.) Environment temperature of the regulators is -40 +60°C.
