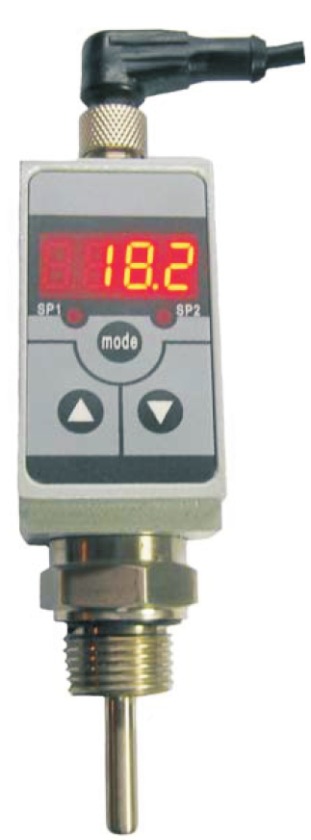

Temperature switch THTS2 electronic

C.2.02.

Download

• Datasheet

Description

• 4 -digit dislay for temperature monitoring
• adjust valve/ % trim of adjust
• emitting diode is part of the outer case (LED)contact status display, simple operation
• simple control and handling

Application

• petrochemical industry
• power-engineering
• hydraulics

Technical parameters

• temperature ranges: -50-0, 0-60, 0-100, 0-120, 0-160, 0-200°C
• output signal: 4-20mA
• connection G1/4, G1/2, M20x1,5
• accuracy class: 0,5%FS (standard)

Specification

Temperature switch THTS2 enable digital temperature measurement and regulation with display on LCD panel, output 4-20mA and switching contacts. For temperature scanning the THTS2 uses temperature sensor Pt100 or similar. By means of inbuilt transducer it converts the measured value onto an analog output, see technical parameters.

THTS2 then evaluates the outcomes by two relay outputs, that may be set individually. THTS2 features simple control. Wide application of THTS2, used for temperature measurement of liquids in petrochemical industry, power engineering, hydraulics, etc.
