Display and regulatory units

C.2.03. - panel, individual design current, voltage input

Download

• Datasheet

Specification

Display units: Wide range of display units for majority of normalized signals (4-20mA, 0-20mA, 0-10V), with option of PC output. Dimensions: from 24x48 up to 48x96mm. Design: into panel, flange, holder, adapter, connector DIN 43 650, etc.

Regulatory units: Integration of display function with regulation. Option of valve, vent, flap and other devices regulation. Easy setting, provision of high accuracy of regulation and control.

PANEL

GIA 2448 - display

• universal LED display unit built into a current loop
• power supply 12V or 24V supply adapter
• display 31 digit, 10mm high LED, accuracy +0,2%,
• size 24x48mm

GIR 600 - regulatory

• regulatory range: -1999+9999 digits
• input: 0-20mA, 4-20mA, 0-1V, 0-10V
• output: freely scalable 2-point regulator for normalized signals
• supply: 230V/50-60Hz; size 48x96mm
• case with IP 65 protection at additional charge

BETWEEN CONNECTORS

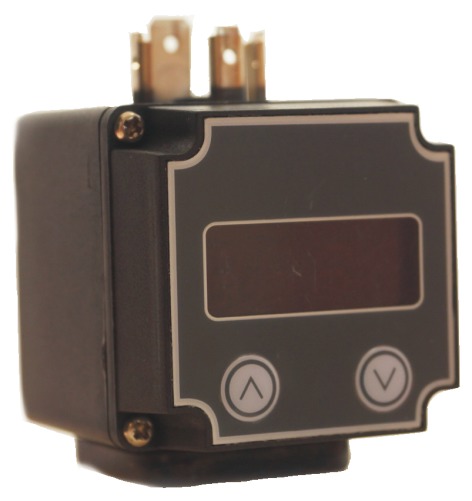

ZED 601 -display

• microprocessor display unit built into transducers current loop 4-20mA
• does not require any additional power supply
• may be connected to any kind of transducer using connector DIN 43650

GRA 420 - regulatory

• additional regulator/display unit into current loop
• freely programmable by 3 buttons or infrared remote control
• input: 4-20mA, 0-10V
• display: 7mm high 4-digit
