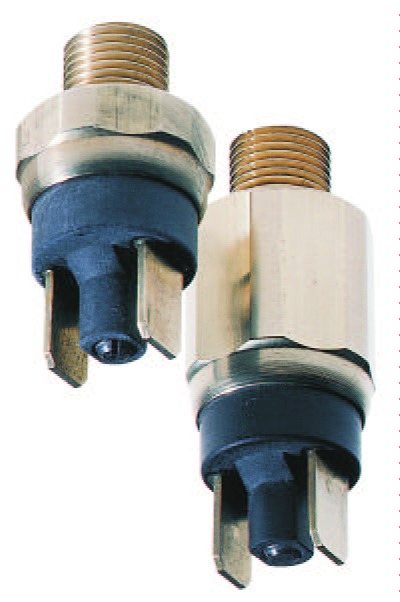

Standard pressure switch series 200
D.1.02. - switch-on or switch-off contact max. 42V
Description
- working part: membrane or spring, NBR
- switching part direct contact, switch-on (NO),switch-off (NC)
- installation position: any
- material: brass; special design stainless steel or galvanised steel
Application
- heating industry
- hydraulics
- air-conditioning
- cooling systems
Technical parameters
- measuring ranges: 0,3-2bar, 1-10bar
- connection thread: G1/8
- hysteresis: 10% set hysteresis
- max. el. contact load: 2A, 100VA, 42V
- el. connection: 2x FAST ON 6,3
- protection: IP 00, DIN 40050
Specification
Standard pressure switches series 200 are designed for external pressure measuring of applications without high requirements on resistence. They are used for simple pressure measuring of liquids and gases within temperature range 25+85°C, mainly used for air, water, cooling emulsion, hydraulic oils. supplied in switch-on (NO) or switchoff (NC) conector. Max. voltage 42V design max. 2A.
Standard connection thread G1/8", material brass (alternatively stainless steel or galvanized steel).
Pressure switches are designed for wide range of applications. Contact cover can be supplied as an accessory.
Technical specification are subject to change without prior notice. Images are for information only
