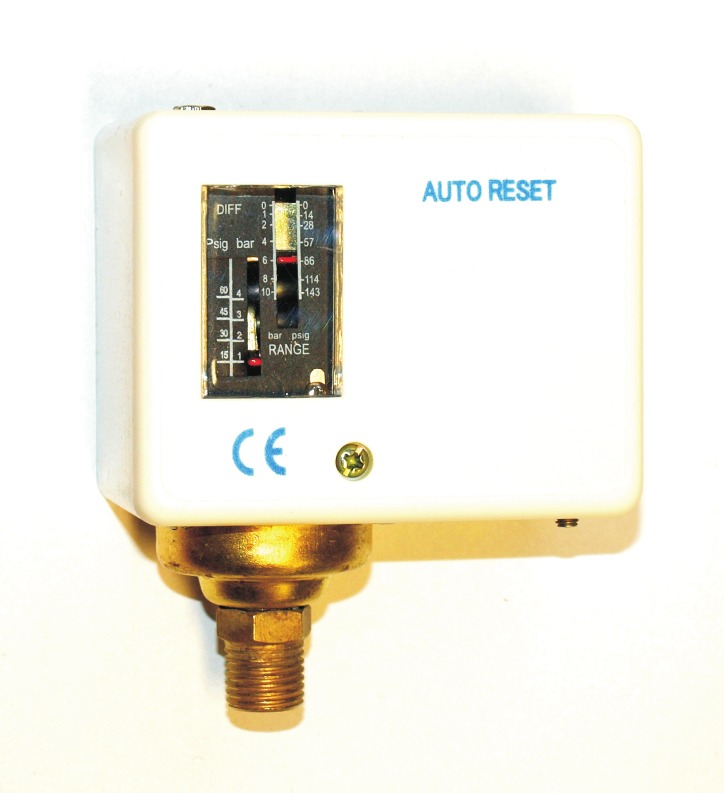

Static pressure governor

D.1.07. - range -0,7+30bar adjustable difference

Download

• Datasheet

Description

• case: plastic
• inspection hole: acrylate
• connection: threaded or hose

Application

• heating industry
• hydraulics
• air-conditioning
• power-engineering

Technical parameters

• measuring ranges (switching difference): -0,7+3bar (0,2+1,5)bar, -0,7+6bar (0,6+4)bar, 1+10bar (1+3)bar, 5+16bar (1+4)bar, 5+24bar (2+5)bar, 5+30bar(5+10)bar, 8+30bar(3-5)
• max. working pressure: 16,5; 35bar
• static pressure: max. 10bar, max. 250bar
• connection thread: G1/4 (M12x1,5) hose
• throw-over contacts: 250V/12A

Specification

Pressure governors are designed to maintain a desired static pressure range according to switching value and difference settings. They can be used for all gas and liquid mediums, which do not have a corrosive effect on copper alloys. Permissible medium temperature -10°C +120°C or -45°C +110°C depending on design.

Pressure governors are supplied with G1/4 connection or with hose connection. They are designed for fixed pipeline installation, alternatively for wall bracket mounting, which is part of the packing.
