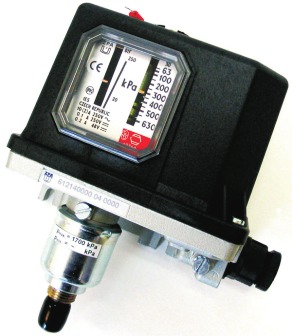

Pressure and vacuum governor

D.1.09. - bellows, membrane, differential pressure

Download

• Datasheet

Description

• case: plastic
• inspection hole: acrylate
• compact design
• connection: clamps on the switch or connector (except for Ex design and switch B)

Application

• heating industry
• hydraulics
• air-conditioning
• power-engineering

Technical parameters

• range: -80kPa-4MPa in 11 ranges (type 61 214) 4 kPa-4MPa in 4 ranges (type 61 218) 4 kPa-40kPa (61 242), -0,3 kPa-10kPa in 8 ranges (type 61 219), 0 kPa-10kPa in 7 ranges (type 61 220), 4 kPa-160kPa in 2 ranges (type 61 215), 4 kPa-160kPa in 2 ranges (type 61 215)
• el. load: 250V/10A, cos 1 , 250V/2A, cos f 0,6-0,3 = 250V/0,1A = 48V/0,2A
• protection: IP 65 design: ATEX

Specification

Pressure and vacuum governors are designed for pressure regulation and signalization of gases and liquids of regulated medium temperatures maximum -40+120 °C.

Governors are intended for use in demanding conditions, where higher IP protection and heavy-duty design is required.

Pressure and vacuum governors are supplied in high pressure design, bellows, with fixed preset values and for differential pressures. Maximum surrounding temperature -40 up to 60°C.
