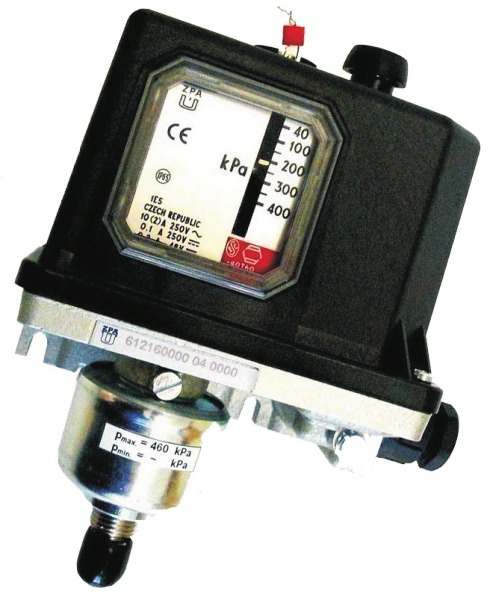

Pressure and vacuum limiter
D.1.10. - bellows
Description
- compact design
- switch clamp connection or connector ( switches B)
Application
- heating industry
- hydraulics
- air-conditioning
Technical parameters
- range: -80kPa - 4MPa in 11 ranges
- el. load: 250V/10A, cos 1 250V/2A, cos pr.0,6-0,3 =250V/0,1A =48V/0,2A
- shocks in operation: f=10-55Hz, sa=do 0,15 mm
- protection: IP 65
Specification
Pressure and vacuum limiters are designed for protection against pressure overload. Stand-by mode is activated by pressing the RESET button. Adjusting screw controls the required value within its range.
Pressure limiter is designed for gases and liquids of medium temperature max.+120°C. Type of medium determines the limiters type, for gaseous fuels and aggressive mediums use stainless steel bellows design.
Technical specification are subject to change without prior notice. Images are for information only
