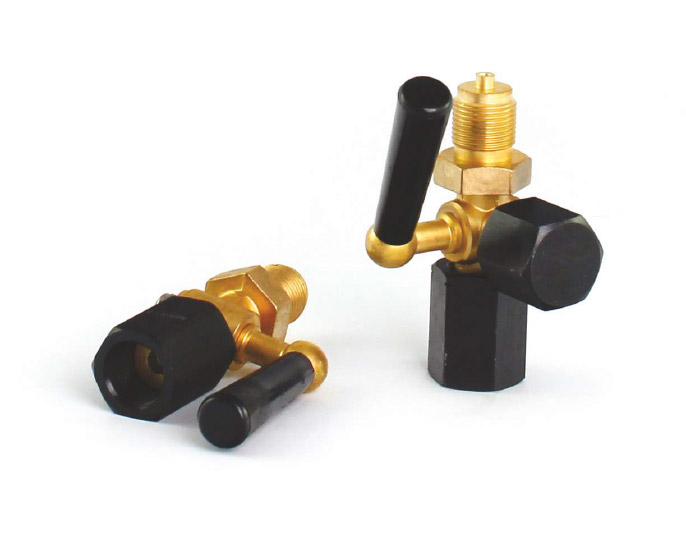

Pressure gauge cock

E.01.a - two-way, three-way PN 6, PN 25

Download

• Datasheet

Description

• body material brass - 423223
• handle material - heat-resistant plastic
• connection material - carbon steel/brass
• design for distribution of air, liquids (16 260, 16 262, 16 263)
• bleeding hole (16 260, 16 262)
• testing connection (16 263)

Application

• heating industry
• air-conditioning
• gas industry
• power engineering

Technical parameters

• connection thread
  DIN 16 260: G1/4, M12x1,5
  DIN 16 262 : G1/2, M20x1,5
  DIN 16 263 : G1/2, M20x1,5
• PN(pressure) - 0,6MPa for 16 260; 2,5MPa for 16 262, 16 263
• testing connection - M20x1,5L (16 263)

Specification

Pressure gauge pin cocks of twoway or three-way design with socket connection are produced in accordance with DIN 16 260, 16 262, 16 263 a EN 837-2

standards they are designed as a special closing armature for pressure gauges with flat sealing, for working pressures and temperatures.

Forged unit with threaded pin on the inlet side, modified for flat sealing. On the outlet side it is equipped with a socket for pressure gauge connection.

Two-way cocks are equipped with a side bleeding hole for bleeding during pressure gauges disassembly. Three-way cocks are equipped with a side duct for connection of control pressure gauge. The cone is attached from the bottom by a nut.
