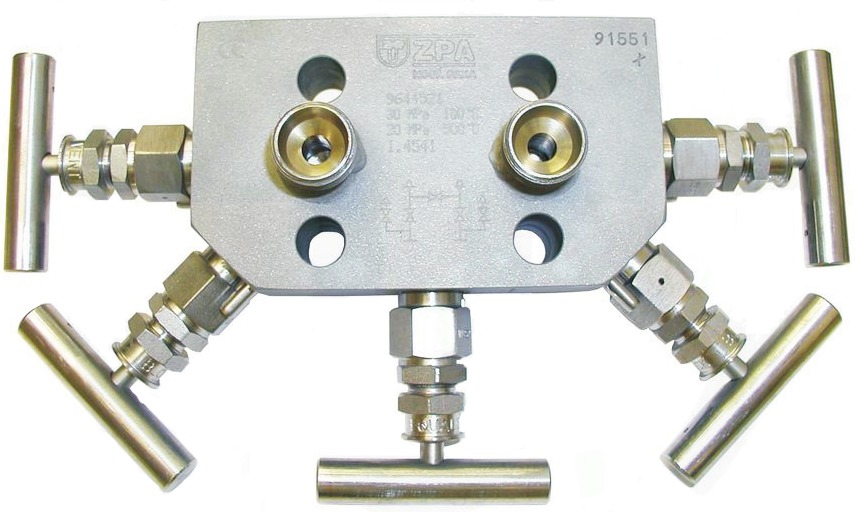

Multi-way valve manifold
E.05.
Description
- body material: stainless steel 17 348/1.4571
- gasket material: stainless steel 17 348/1.4571 Si3N4 or plastic
- sealing O-rings: FPM, NBR, EPDM
- seal: PTFE, PEEK, Grafoil
Application
- heating management
- power engineering
- petrochemical industry
- farmaceutical industry
Technical parameters
- PN 42 MPa
- Tmax 500°C
- materials: stainless steel 17 348/1.4571 ceramics Si3N4, plastic
- design: 2, 3, 5 way
Specification
Multi-way valve manifolds are used mainly for safe and controlled use of differential pressure gauges and differential pressure sensors. They serve for closing, opening, bleeding and connection of impulse piping, installed for differential pressure gauges and sensors of differential pressure.
The basis of this system is a body with screwed-in valve units. Its base is part of the body of the main armature. Armatures with soft sealing have bases of special shape, which help to ensure perfect tightness. Main body material: stainless steel 17 348/1.4541. Valve units are of various constructions depending on the type of used spindle. That may consist of elastomer O-ring, or plug made of graphit or plastic seal.
Technical specification are subject to change without prior notice. Images are for information only
