Pressure shock absorbers cooler 03515
E.13.
Technical parameters
Pressure shock absorbers
- connection: M12x1,5, M20x1,5, G1/4, G1/2
- brass (suitable for pressures up to 25MPa)
- steel (suitable for pressures up to 60MPa)
Cooler
- connection: M20x1,5, G1/2
- type 03515/1 - straight capillary
- type 03515/2 - spiral capillary
Specification
Pressure shock absorbers
Pressure shock absorbers are designed for protection of pressure gauges measure mechanism against mediums pressure shocks. Applicable for non-solidifying liquids and gases that do not create crystals and that do not have corrosive effect on material of the capillary and body. Supplied with various inner diameters of the absorbing capillary.
Cooler

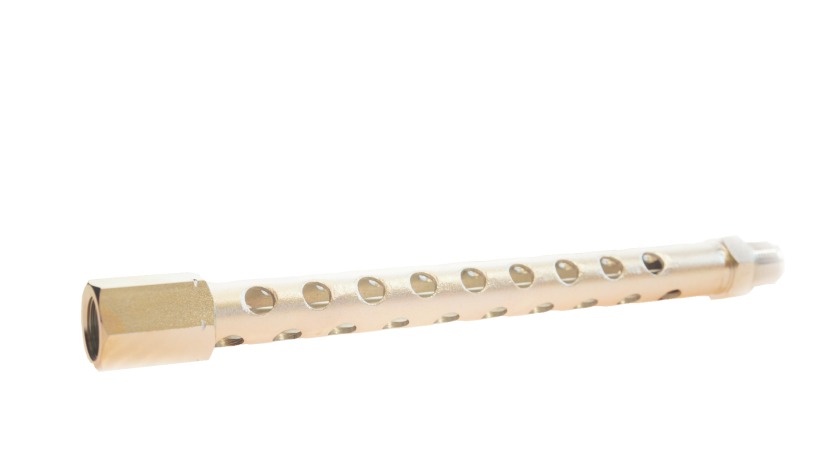

Coolers of measured mediums are used for protection of pressure gauges measure mechanism against mediums increased temperature. Cooling is achieved by routing the medium through capillary. Capillary of straight or spiral design is protected by perforated tube.
Technical specification are subject to change without prior notice. Images are for information only
