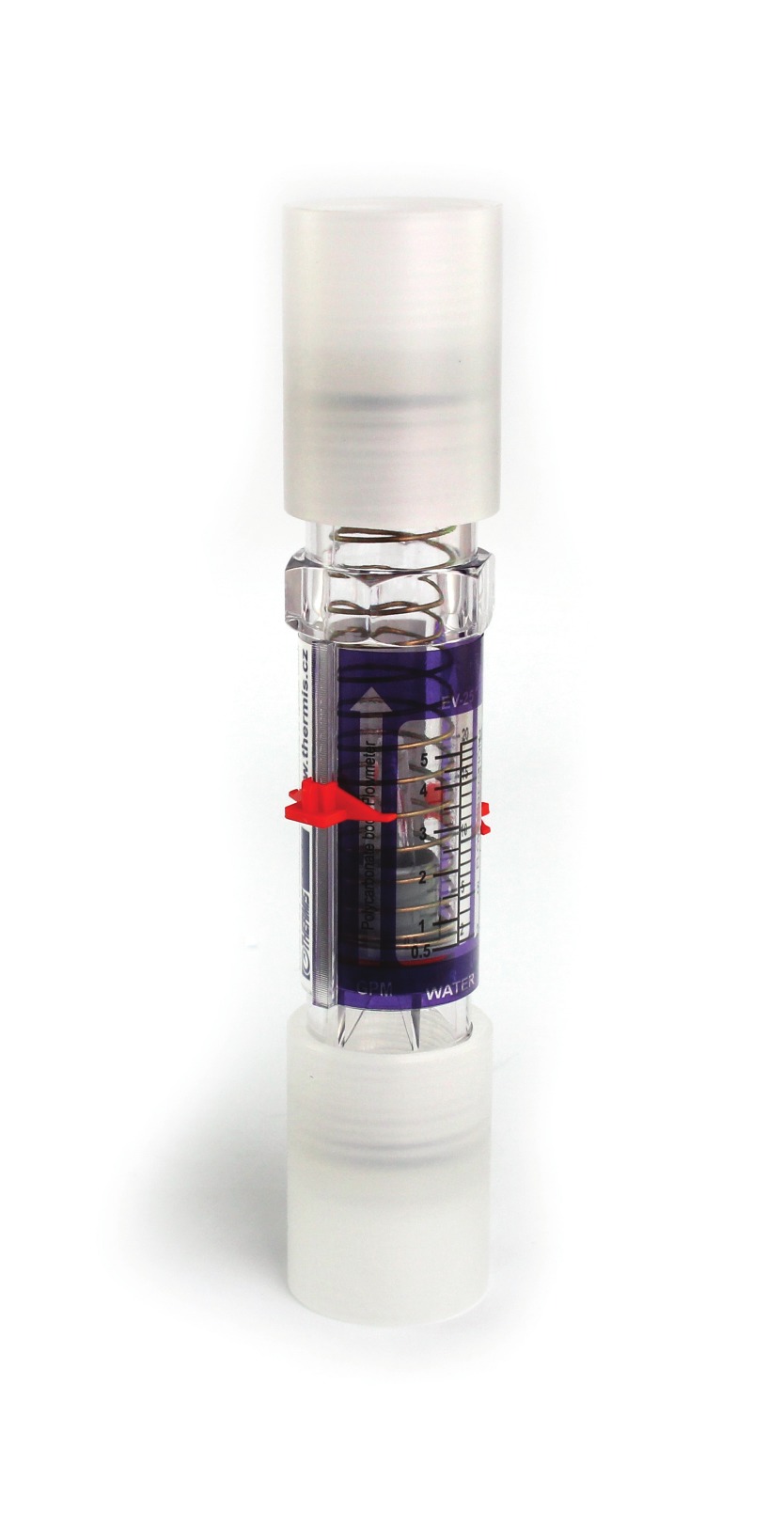

Flowmeter EV
F.01. - spring flowmeter rate of flow: 2l/h - 380l/h liquid 5l/sec - 370 l/sec gas
Description
- case: PC, PSU
- connection material: plastic, teflon or stainless steel
- float spring: stainless steel, plastic
- any position of installation
- option of liquid(water) and gases(air) measuring
Technical parameters
- model: EV 15, 20, 25, 40, 50
- measuring range: liquid 2-20, 4-26, 4-35, 5-60, 15-65, 20-10, 12-90, 20-200, 30-280, 40-380l/min; gases 5-20, 10-30, 15-45, 20-70, 30-80, 35-110, 15-95, 20-140, 25-275, 45-370l/sec
- connection thread: G1/2 (G 3/4, G1), G1 (1/2, G 2)
- T max: 120°C
- PN: 1MPa
- T ensuring measurement accuracy: 0-80°C
- accuracy class: 5%
Specification
Spring-tube flowmeters EV are used for flow measuring of liquids (water, gases), where it is essential to measure instantaneous flow.
Flowmeters work on a principle of floats orifice plate resistance to spring in a closed cylindric measuring tube.
Flowmeters are equipped with two adjustable red needles of limiting values and a scale liter per minute, alternatively a scale for gas measuring. They are suitable for all positions of installation. Only products PC, PSU are supplied with a high temperature and corrosive resistance.
Technical specification are subject to change without prior notice. Images are for information only
