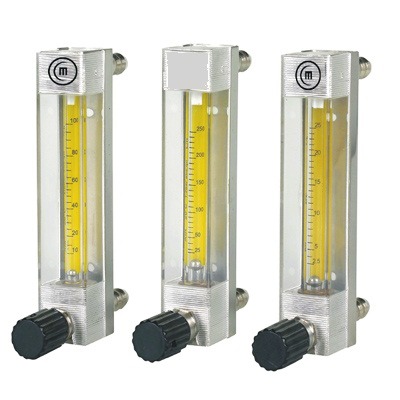

Flowmeter LZB
F.04. - panel diameter: 3,4,6,10 2,5 ml/min - 160 l/h liquid 0,03 l/min - 2,5 mł/h gas
Description
- case: stainless steel
- connection material: stainless steel
- flowmeters core: silicate glass
- sealing and other hydrophilic parts: teflon
- switching contacts of limiting values
- regulatory knob
- panel mounting
- option of liquid (water) and gases (air) measuring
Technical parameters
- diameter: DN 3, 4, 6, 10 mm
- measuring range: 2,5-25, 6-60, 10-100ml/min, 1-10l/h...16-160l/h (water) 0,03-0,3, 0,06-0,6, 0,1-1, 0,15-1,5l/min 0,016-0,16m3/h ... 0,25-2,5m3/h (air)
- T max: -20+200 °C
- PN: 0,6 Mpa, 1 Mpa
- thread: 2x M6
- accuracy class: 2,5%, 4%, 6%
Specification
LZB glass flowmeters in panel design are used for instantaneous flow measurements of aggressive liquids and gases. The core of this flowmeter is made of silicate glass, case of stainless steel. Other hydrophilic parts of the flowmeter are made of teflon. Such construction ensures corrosion resistance of this series.
Flowmeters are suitable for measurements of various types of acids and alcalis, oxidants and other corrosive substances, such as chemicals, kerosene, fertilizers, etc. Panel flowmeters are equipped with reduction/throttle valve for required flow setting.
Flowmeters may further be equipped with switching contacts of limiting values.
Technical specification are subject to change without prior notice. Images are for information only
