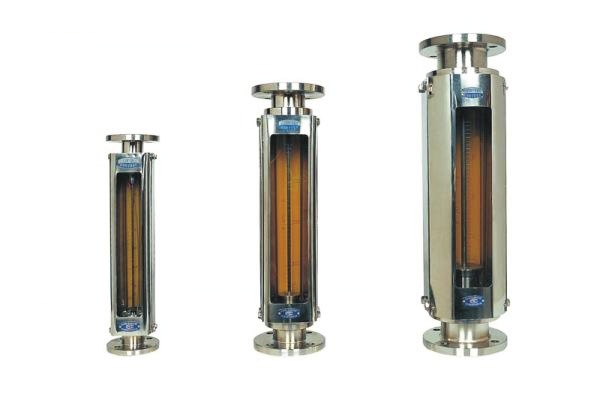

Flowmeter LZB-S

F.06. - DN 15...100 glass / stainless steel design

Download

• Datasheet

Description

• case: stainless steel
• inspection hole: glass
• connection: flange , option of threaded adapters
• float and guide rod: stainless steel
• design: LZS-B all hydrophilic parts are teflon-plated, Viton sealing

Application

• food industry
• heating management, power engineering
• mechanical engineering
• chemical industry

Technical parameters

• diameter: DN 15, 25, 40, 50, 80, 100 mm
• measuring range for liquids: 6-60 l/h... 50-120 m3/h
• measuring range for gases: 0,25-2,5... 500-2500m3/h
• connection thread: G1/2
• accuracy class: 1,5 - 2,5%
• PN: 0,4- 0,6

Specification

All-stainless steel float flowmeters LZB-S in design that combinates stainless steel, glass, PTFE and Viton are used for instantaneous flow measurements of standard and aggressive liquids and gases.

The core of this flowmeter is made of silicate glass, case is made of stainless steel. All hydrophilic parts of the flowmeter are made of stainless steel or they are teflonplated. Such construction ensures corrosion resistance of this series.

Flowmeters are suitable for measurements of various types of liquids and gases, that do not have corrosive effect on contact materials and sealing. Default connection by flange, threaded adapters come as accessories.
