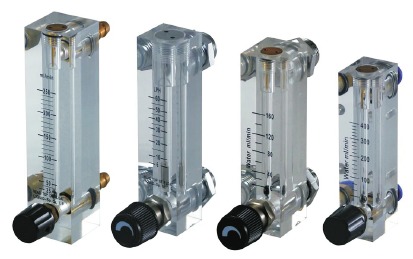

Flowmeter LZM-T

F.09. - with regulatory valve rate of flow: 6ml/min - 170 l/min liquid 0,2 l/min - 160 m3/h gas

Download

• Datasheet

Description

• case: acrylate, glass
• connector material: ABS, PVC, polypropylen brass, stainless steel, chromium-plated brass
• float: acrylate, teflon
• sealing: NVR, PTFE
• control valve
• installation: only vertical
• option of liquid (water) and gases (air) measuring

Application

• food industry
• mechanical engineering
• test and lab equipment

Technical parameters

• model: 4T, 6T, 8T, 15T, 20T, 25T
• measuring range: from 6-60ml/min up to 100-1000ml/min 2,5-25, 4-40, 6-60 l/h 0,5-4 l/min... 30-170 l/min (water) from 0,2-2l/min up to 6-30 l/min from 1-10m3/h up to 16-160m3/h (air)
• T max: 80°C
• PN: 6 bar
• thread: G1/4, G1/2, G3/4, G1"
• accuracy class: 4%

Specification

Flowmeters LZM-T are used for instantaneous flow measurements of liquid and gases.

This model of flowmeter is suitable for panel mounting. Flow may be regulated by use of valve.

Manufactured in accuracy class 4%. Various materials of connectors, floats and valves.

Vertical installation only.
